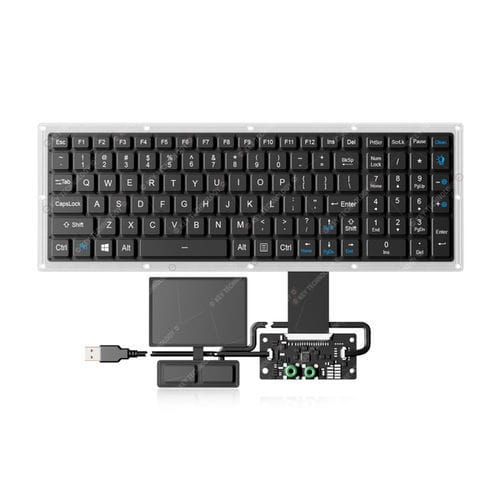

Panel-mount keyboard K-TEK-V356KP-FN-BL-FC-PR-ANA-151B-DWP+TP85+2K

scissor switchwith 2 mouse keys102-key

Overview
102-key fully sealed scissor-switch keyboard with integrated ultra-thin Flexible Printed Circuit, reinforced wide-temperature 400 DPI touchpad, numeric keypad and 12 function keys. Panel-mount solution with IP67 front panel protection, adjustable white backlight, FN+Clean cleaning mode and USB interface. Designed for mission-critical and harsh-environment systems; patented design (Patent number: 202422198937.6).

Features

• 102 keys + 2 mouse buttons
• Scissor-switch technology with 1.20mm ±0.10mm key travel
• Fully sealed waterproof front panel (IP67)
• Built-in ultra-thin Flexible Printed Circuit
• Reinforced wide-temperature touchpad, 400 DPI resolution
• Numeric keypad and 12 function keys (F1–F12)
• Adjustable white backlight
• Panel-mount installation
• Durable coating and anti-microbial surface
• FN + Clean keys for in-place cleaning
• Meets MIL-STD-461G and MIL-STD-810H environmental and EMI/EMS requirements
• Patented design (Patent number: 202422198937.6)

Dimensions
Keyboard: 373.0 mm x 130.2 mm (L x W)
TouchPad: 86.0 mm x 61.0 mm (L x W)

Mechanical data
Keys: 102 keys + 2 mouse buttons
Key switch: Scissor-switch technology
Key travel: 1.20 mm ±0.10 mm
Key life span: > 5 million operations
Actuation force: 0.8 N ±0.2 N

Electrical data
Supply voltage: DC +5V ±5%
Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
Lifespan (electrical): > 5 years
Interface: USB
OS compatibility: Windows, Linux, Unix, Mac OS X, VxWorks, Android

MIL-STD-461G (EMC/EMI/EMS) coverage examples

• CE101: 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
• CE102: 10kHz - 10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
• CS101: 25Hz - 150kHz Conducted Susceptibility, Power Leads
• CS106: Conducted Susceptibility, Transients, Power Leads
• CS112: Electrostatic Discharge Susceptibility
• CS114: 4kHz - 400MHz Conducted Susceptibility, Bulk Cable injection
• CS115: Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
• CS116: 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients
• RE101: 25Hz - 100kHz Radiated Emissions, Magnetic Field
• RE102: 10kHz - 18GHz Radiated Emissions, Electric Field
• RS101: 25Hz - 100kHz Radiated Susceptibility, Magnetic Field
• RS103: 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810H environmental test coverage and adaptability
Operating temperature: -40°C to +60°C
Storage temperature: -50°C to +70°C
Humidity test: 30°C–60°C, 95% RH cycles, total 240 h
Atmospheric pressure: 57 kPa – 106 kPa
Vibration: 0–5.1 Hz, displacement 1 mm (transport & operating references)
Shock: peak accelerations up to 40g, pulse durations ~11 ms, triaxial tests
Temperature shock: cycles between -50°C and +70°C per specified cycles
Fungus test: specified strains, 28 days (672 hours) exposure
Salt spray: NaCl 5 ±1%, pH 6.6, specified cycles totaling 96 h with drying steps
Rain test: rainfall and blowing rain, wind ≥18 m/s, 3 h duration
Dust test: blowing dust procedures with specified concentrations and durations
Transport package drop: 122 cm height, up to 26 drops to faces/edges/corners

Applications
Vehicle consoles, aerospace and naval systems, radar consoles, rugged portable workstations, UAV ground stations and other mission-critical or harsh-environment systems.

Technical specifications

• Model type: Scissor-switch keyboard with touchpad and numeric keypad
• Keys: 102 (+ 2 mouse buttons)
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Key life: > 5 million operations
• Backlight: Adjustable white
• Protection level: IP67 (front panel)
• Mounting: Panel mount
• Interface: USB
• Supply voltage: DC +5V ±5%
• Current: ≤30 mA (backlight off), ≤300 mA (backlight on)
• Touchpad resolution: 400 DPI
• Operating temp: -40°C to +60°C
• Storage temp: -50°C to +70°C
• Standards: MIL-STD-461G, MIL-STD-810H, RoHS, CE, FCC
• Dimensions: Keyboard 373.0 x 130.2 mm; TouchPad 86.0 x 61.0 mm
• Patented: Patent number 202422198937.6
