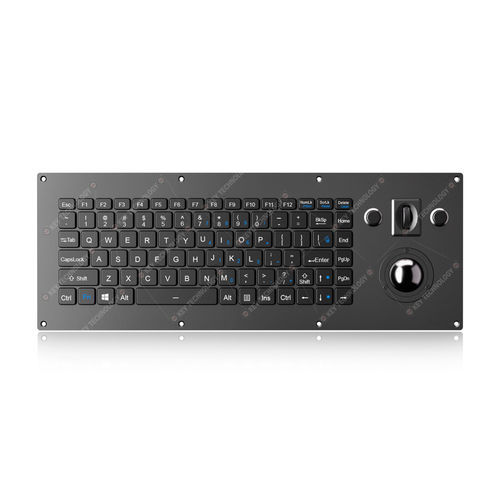

Panel-mount keyboard K-TEK-V405-MTB-AVR-RM-FN-BL-FC-SC-ANA-151B-BT

scissor switch86-keywith trackball

Description
86-key IP67 fully sealed embedded rugged scissor-switch keyboard with integrated ultra-thin Flexible Printed Circuit and a 38.0 mm removable black resin mechanical trackball (>400 DPI) for fast, accurate cursor control. Two sealed mouse buttons (left/right) and one central scroll wheel provide standard pointing functions. Twelve function keys (F1–F12) on the top row. Rugged scissor-switch keys with 1.20 mm ±0.10 mm travel and 0.8 N ±0.2 N actuation force deliver reliable tactile input with >5 million keystroke life. Front plate: titanium-electroplated stainless steel with sinking holes and anti-microbial finish to resist chemicals and liquids.

Dimension
405.0 mm x 150.0 mm (front panel)

MECHANICAL DATA
Key: 86 keys + 2 mouse buttons
Key Switch: Rugged scissor switch technology
Key Travel: 1.20 mm ±0.10 mm
Key Life Span: more than 5 million operations
Actuation Force: 0.8 N ±0.2 N

ELECTRICAL DATA
Supply Voltage: DC +5V ±5%
Current Rating: ≤30 mA (backlight off); ≤300 mA (backlight on)
Lifespan (electrical): > 5 years
Interface: USB
OS: Windows, Linux, Unix, Mac OSX, VxWorks, Android

MIL-STD / EMC (selected)
Designed to meet MIL-STD-461G for EMC/EMI/ESD (selected tests: CE101, CE102, CS101, CS106, CS112, CS114, CS115, CS116, RE101, RE102, RS101, RS103). Patented design (Patent number: 202422198937.6).

ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40°C to +60°C
Storage temperature: -50°C to +70°C
Humidity test: 30–60°C at 95% RH, total 240 h cycles
Atmospheric pressure: 57 kPa ~ 106 kPa
Vibration: 0–5.1 Hz, 1 mm displacement
Shock: peak 40g, 11 ms pulses, triaxial impacts
Temperature shock, fungus, salt spray, rain, dust, and transport package drop tests as specified to MIL-STD-810H conditions.

RELIABILITY & CERTIFICATION
Protection Level: IP67
Certifications: RoHS, CE, FCC; designed to MIL-STD-461G and MIL-STD-810H conditions
Lifespan: > 5 years
MTBF: > 20,000 H
MTTR: < 30 min

Application
Suitable for vehicle consoles, aerospace, naval/maritime systems, radar and display consoles, rugged portable computers, UAV ground stations and other mission-critical harsh-environment systems.

Technical specifications

• Model family: K-TEK V405
• Keyboard type: Embedded rugged scissor-switch with integrated trackball
• Number of keys: 86 keys + 2 sealed mouse buttons
• Key technology: Rugged scissor switch
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Backlight: Adjustable white backlight
• Trackball: 38.0 mm removable black resin mechanical trackball, >400 DPI
• Mouse controls: 2 sealed buttons (left/right) + scroll wheel
• Interface: USB
• Supply voltage: DC +5V ±5%
• Current consumption: ≤30 mA (backlight off); ≤300 mA (backlight on)
• Protection rating: IP67
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Vibration/Shock: Conforms to MIL-STD-810H test conditions
• EMC/EMI/ESD: Designed to meet MIL-STD-461G
• Material/finish: Titanium electroplated stainless steel front plate with sinking holes; anti-microbial finish
• Durability: Key life >5 million operations; MTBF >20,000 hours
• Certifications: RoHS, CE, FCC; military standards compliance noted
