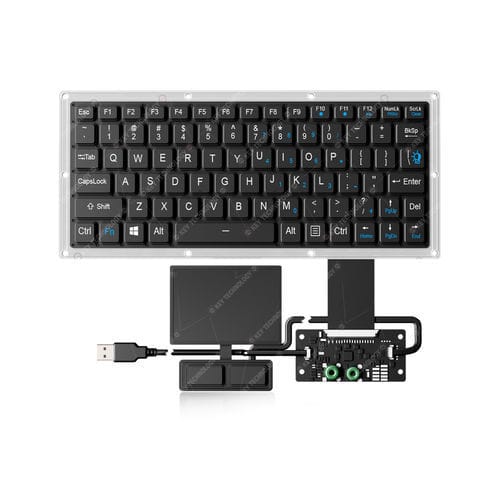

Panel-mount keyboard K-TEK-V277-FN-BL-FC-PR-ANA-151B-DWP+TP85+2K

scissor switchwith 2 mouse keyswith Fn key

Product overview
Panel-mount IP67 fully sealed scissor-switch keyboard with integrated ultra-thin flexible printed circuit and a fully sealed wide-temperature touchpad (400 DPI). 80 keys plus two mouse buttons and 12 top-line function keys (F1–F12). Scissor switch design with 1.20 mm ±0.10 mm key travel, actuation force 0.8 N ±0.2 N and key life >5 million operations. FN+Clean combination key for in-situ cleaning. Designed to meet MIL-STD-461G and MIL-STD-810H test items. Patent number 202422198937.6.

Dimensions
Keyboard: 294.0 mm x 130.2 mm (L x W)
TouchPad: 86.0 mm x 61.0 mm (L x W)

Mechanical data (summary)

• Keys: 80 keys + 2 mouse buttons
• Key switch: Scissor switch technology
• Key travel: 1.20 mm ±0.10 mm
• Key life span: > 5 million operations
• Actuation force: 0.8 N ± 0.2 N

Electrical data (summary)

• Supply voltage: DC +5V ±5%
• Current rating: ≤30 mA (backlight off); up to ≈300 mA (backlight on)
• Lifespan: > 5 years
• Interface: USB
• OS compatibility: Windows, Linux, Unix, macOS, VxWorks, Android

Environmental & reliability tests (high-level)
Complies with MIL-STD-461G (EMC/EMI/EMS/ESD) and multiple MIL-STD-810H environmental tests including wide temperature operation/storage, low pressure, humidity cycling, vibration, shock (peak up to 40 g, ~11 ms), temperature shock, fungus exposure, salt spray, rain/blowing rain, dust ingress and transport drop tests. RoHS compliant, CE and FCC certified.

Applications
Vehicle-mounted systems, aerospace and naval consoles, radar and display consoles, rugged portable systems, UAV ground stations and other mission-critical or harsh environments.

Technical specifications

• Model family / Series: K-TEK V277
• Category: DWP Scissors Switch Keyboard (panel mount)
• Number of keys: 80 keys + 2 mouse buttons
• Function keys: 12 (F1 ~ F12)
• Protection level: IP67 (front panel)
• Backlight: Adjustable white backlight
• Interface: USB
• Touchpad: Fully sealed reinforced wide-temperature, 400 DPI, 86.0 mm x 61.0 mm
• Operating temperature: -40 °C to +60 °C
• Storage temperature: -50 °C to +70 °C
• Atmospheric pressure range: 57 kPa ~ 106 kPa
• Certifications: RoHS, CE, FCC; tested to MIL-STD-461G and MIL-STD-810H items
• Design features: ultra-thin flexible printed circuit, pry-resistant key caps, chemical-resistant and anti-microbial surface, FN+Clean key, panel mount solution
• Patent: 202422198937.6
