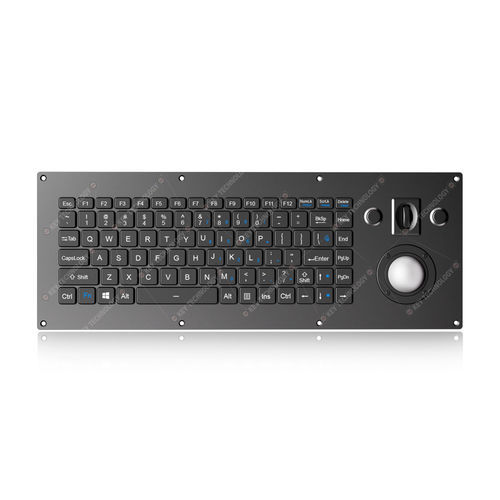

Panel-mount keyboard K-TEK-V405-OTB-AVR-RM-FN-BL-FC-SC-ANA-151B-BT

scissor switchwith 2 mouse keys86-key

Description
86 keys IP67 fully sealed waterproof embedded ultra-thin scissor-switch keyboard with built-in ultra-thin flexible printed circuit. Removable 38.0 mm waterproof silvered hardened resin optical trackball (≥800 DPI) provides accurate cursor positioning. Two sealed mouse buttons and a central scroll wheel enable mouse functions. Scissor-switch technology with 1.20 mm ±0.10 mm key travel and 0.8 N ±0.2 N actuation force; key life >5 million operations. Black titanium electroplated stainless steel front plate with sinking holes and anti-microbial surface. FN + Clean key combination allows cleaning without removing the keyboard. Adjustable white backlight. Designed for applications requiring electromagnetic and environmental qualification (selected MIL-STD-461G and MIL-STD-810H items). Patent: 202422198937.6.

Dimension
Front panel: 405.0 mm x 150.0 mm

Product properties

• Model: K-TEK V405
• Category: DWP Scissors Switch Keyboard
• Keys: 86 keys + 2 sealed mouse buttons
• Key travel: 1.20 mm ±0.10 mm
• Key technology: Scissor switch
• Backlight: Adjustable white
• Interface: USB
• Protection: IP67
• Mounting: Panel mount
• Trackball: Removable 38.0 mm waterproof silvered hardened resin optical trackball, ≥800 DPI
• Mouse: 2 sealed mouse buttons + scroll wheel
• Front plate: Black titanium electroplated stainless steel, anti-microbial surface
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Compliance: MIL-STD-461G (selected), MIL-STD-810H (selected), RoHS, CE, FCC
• Patent: 202422198937.6

MECHANICAL DATA

• Keys: 86 keys + 2 mouse buttons
• Key switch: Scissor switch technology
• Key travel: 1.20 mm ±0.10 mm
• Key life span: >5 million operations
• Actuation force: 0.8 N ±0.2 N

ELECTRICAL DATA

• Supply voltage: DC +5V ±5%
• Current rating: ≤30 mA (backlight off); ≤300 mA (backlight on)
• Lifespan (electrical): >5 years
• Interface: USB
• OS support: Windows, Linux, Unix, macOS, VxWorks, Android

MIL-STD-461G (selected items)

• CE101, CE102: Conducted emissions (audio and RF ranges)
• CS101, CS106, CS112, CS114, CS115, CS116: Conducted susceptibility and ESD
• RE101, RE102, RS101, RS103: Radiated emissions and susceptibility

MIL-STD-810H / ENVIRONMENTAL ADAPTABILITY (selected tests)

• Operating temperature: -40°C to +60°C; storage: -50°C to +70°C
• Humidity: 95% RH cycles (specified test profile)
• Vibration and shock: triaxial vibration and 40g shock pulses (specified tests)
• Temperature shock, salt spray, rain, dust, fungus and transport drop tests (selected procedures)

RELIABILITY

• Protection level: IP67
• Lifespan: >5 years
• MTBF: >20,000 h
• MTTR: <30 min
• Certifications: RoHS, CE, FCC

Technical specifications

• Dimension (front panel): 405.0 mm x 150.0 mm
• Trackball diameter: 38.0 mm
• Trackball resolution: ≥800 DPI
• Mounting solution: Panel mount
• Applications: vehicle, aerospace, naval, maritime, radar consoles, portable rugged laptops, UAV ground stations
