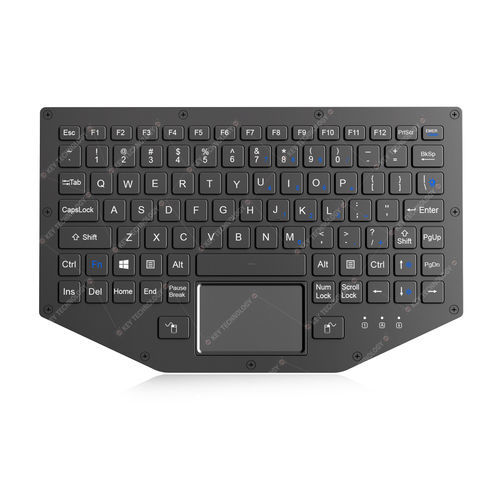

Panel-mount keyboard K-TEK-V277TP-FN-BL-FC-PR-AL-ML-DWP

scissor switchwith Fn key90-key

Product Description

• 90-key ultra-thin patented scissor-switch keyboard with integrated ultra-thin Flexible Printed Circuit.
• Fully sealed, waterproof front panel (IP67) with aluminum alloy front frame to reinforce structure and prevent deformation.
• Integrated fully sealed, wide-temperature touchpad (400 DPI) with two mouse buttons (left and right).
• Adjustable white backlight; 12 function keys (F1–F12) on the top row. FN + LOCK key combination allows cleaning without removing the keyboard.
• Scissor-switch design: 1.20 mm ±0.10 mm key travel, good tactile feedback, fast and quiet operation. Pry-resistant keycaps reduce key loss, stuck keys or repeated input.
• Durable coating and antimicrobial surface resistant to common chemicals and liquids in harsh environments.
• Designed to meet MIL-STD-810H (wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation, etc.); MIL-STD-461G EMC/EMI/EMS/ESD optional.
• Patent: 202422198937.6.

Applications

• Vehicle, aerospace, naval and maritime systems
• Radar and display consoles
• Portable rugged laptops and field equipment
• UAV ground stations and other electronics for harsh environments

Dimensions
296.0 mm x 186.0 mm (L x W)

Mechanical Data (summary)
Key / Key number: 90 keys + 2 mouse buttons
Key switch: Scissor-switch technology
Key travel: 1.20 mm ±0.10 mm
Key life span: > 5 million operations
Actuation force: 0.8 N ±0.2 N

Electrical Data (summary)
Supply voltage: DC +5V ±5%
Current rating: ≤30 mA (backlight off); ≤300 mA (backlight on)
EMC standard: EN 55032:2015; EN 55035:2017
Lifespan: > 5 years
Interface: USB
OS compatibility: Windows, Linux, Unix, Mac OS X, VxWorks, Android

Environmental Adaptability & Tests (summary)
Operating temperature: -40°C to +60°C
Storage temperature: -50°C to +70°C
Humidity test: test temperature 30°C–60°C; test humidity 95% RH; 24 h cycle, 10 cycles (total 240 h)
Atmospheric pressure: 57 kPa – 106 kPa
Vibration test: 0 – 5.1 Hz, displacement 1 mm (working vibration spec shown)
Shock test: post-peak sawtooth pulse; peak acceleration 40 g; pulse duration 11 ms; X, Y, Z triaxial impacts
Temperature shock test: multi-cycle temperature shock per qualification procedure
Fungus test: specified strains and 28-day (672 h) exposure procedure
Salt spray test: NaCl solution 5 ±1% at 35°C for designated cycles
Rain test: rainfall and blowing rain procedure; wind velocity ≥ 18 m/s; test duration 3 h
Dust test: dust-blowing procedures and multi-stage cycles (example: 6 h at 23°C then 6 h at 60°C, etc.)
Transport package drop test: sample weight ≤ 45.4 kg; max size < 91.0 cm; drop height 122 cm; 26 drops covering each surface/edge/corner

Reliability & Certifications
RoHS compliant; CE and FCC certified; designed to meet MIL-STD-810H; MIL-STD-461G optional for EMC/EMI/EMS/ESD
Protection level: IP67 (front panel)
Lifespan: > 5 years
MTBF: > 20000 H
MTTR: < 30 min

Technical specifications

• Model name: K-TEK-V277TP-FN-BL-FC-PR-AL-ML-DWP
• Category: DWP Scissor Switch Keyboard
• Keys: 90 keys + 2 mouse buttons
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Key life: > 5 million operations
• Backlight: Adjustable white backlight
• Interface: USB
• Protection: IP67 front panel
• Mounting: Panel mount solution
• Touchpad: Fully sealed, wide-temperature touchpad, 400 DPI, 2 mouse buttons
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Standards: EN 55032:2015, EN 55035:2017, MIL-STD-810H; MIL-STD-461G optional
• Patent: 202422198937.6
• Dimensions (L x W): 296.0 mm x 186.0 mm
