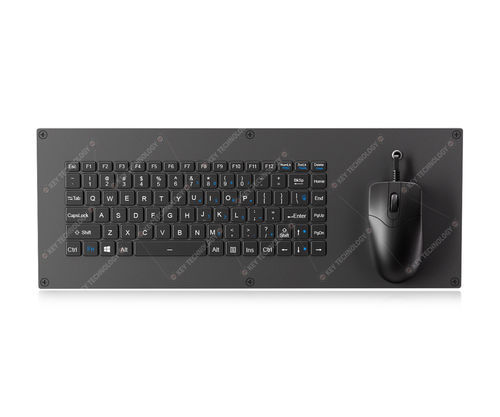

Panel-mount keyboard K-TEK-V455-FN-BL-FC-SC-ANA-151B-M58-OMS

scissor switch86-keywith mouse

Description
The K-TEK V455 is an IP67-sealed 86-key keyboard designed for harsh and mission-critical environments. It features rugged scissor-switch keys with 1.20mm ±0.10mm travel and integrated ultra-thin Flexible Printed Circuit for a compact profile. The front panel is CNC-processed aluminum alloy with a black titanium spray-paint finish. An integrated movable optical mouse provides left/right click, scroll and an adjustable DPI key. FN+Clean key combination enables safe cleaning without disconnecting the unit.

Features

• Keys: 86
• Key switch: Rugged scissor-switch technology
• Key travel: 1.20mm ±0.10mm
• Actuation force: 0.8N ±0.2N
• Key life span: >5 million operations
• Protection: IP67 (front panel)
• Mounting: Top panel mount
• Backlight: Adjustable white (optional Red/Green/Yellow)
• Integrated optical mouse with left/right click, scroll and DPI adjust
• Surface: Durable coating and anti-microbial treatment
• Drain hole on rear to prevent liquid damage and allow ventilation

Applications
Vehicle consoles, aerospace systems, naval and maritime platforms, defense equipment, radar consoles, rugged portable computers, UAV ground stations and other demanding industrial and military environments.

Technical specifications

• Model: K-TEK V455
• Category: DWP Scissor Switch Keyboard
• Key number: 86 keys
• Key travel: 1.20mm ±0.10mm
• Backlight: Adjustable white (optional Red/Green/Yellow)
• Interface: USB
• Key switch: Rugged scissor-switch technology
• Protection level: IP67 (front panel)
• Mounting solution: Top panel mount
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Supply voltage: DC +5V ±5%
• Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
• Lifespan: >5 years
• Key life span: >5 million operations
• Actuation force: 0.8N ±0.2N
• MTBF: >20000H
• MTTR: <30 min
• OS compatibility: Windows, Linux, Unix, Mac OSX, VxWorks, Android
• Mechanical dimensions (L x W): 455.0mm x 172.0mm
• Standards: MIL-STD-461G and MIL-STD-810H
• Additional: Aluminum alloy CNC front panel with black titanium spray-paint finish; drain hole on rear; FN+Clean key; patented design (Patent number: 202422198937.6)
