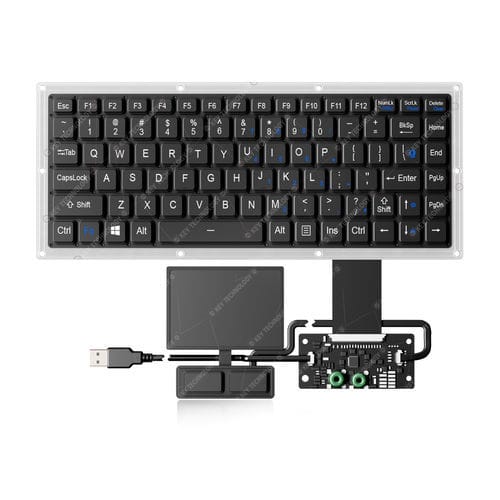

Panel-mount keyboard K-TEK-V296-FN-BL-FC-PR-ANA-151B-DWP+TP85+2K

scissor switch86-keywith 2 mouse keys

Description
86-key IP67 fully sealed rugged scissor-switch keyboard with integrated ultra-thin Flexible Printed Circuit (FPC) and a fully sealed reinforced touchpad (400 DPI) with two mouse buttons. Panel-mount design with adjustable white backlight and FN+Clean in-place cleaning function. Engineered for harsh environments and compliance with MIL-STD-461G and MIL-STD-810H requirements. Patented design (Patent number: 202422198937.6).

Mechanical data

• Keys: 86 keys + 2 mouse buttons
• Key technology: Rugged scissor switch (patented)
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Key life span: > 5 million operations
• Key caps: pry-resistant design

Electrical data

• Supply voltage: DC +5V ±5%
• Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
• Interface: USB
• OS compatibility: Windows, Linux, Unix, Mac OSX, VxWorks, Android
• Electrical lifespan: > 5 years

Standards / Certifications
MIL-STD-461G (EMC/EMI/EMS/ESD), MIL-STD-810H (environmental), RoHS compliant, CE and FCC certified

Environmental adaptability

• Operating temperature: -40ºC to +60ºC
• Storage temperature: -50ºC to +70ºC
• Humidity: tested 30–60ºC at 95% RH, 240 h total (10 cycles)
• Atmospheric pressure: 57 kPa – 106 kPa
• Vibration: 0–5.1 Hz, displacement 1 mm
• Shock: peak 40 g, 11 ms pulse, X/Y/Z triaxial impacts
• Temperature shock, fungus, salt spray, rain and dust tests per specification

Reliability

• Protection level: IP67 (front panel)
• Design lifespan: > 5 years
• MTBF: > 20,000 hours
• MTTR: < 30 minutes

Applications

• Vehicle systems
• Aerospace
• Naval / Maritime
• Radar and display consoles
• Rugged portable laptops
• UAV ground stations

Technical specifications

• Product category: DWP Scissors Switch Keyboard
• Key count: 86 keys + 2 mouse buttons
• Key travel: 1.20 mm ±0.10 mm
• Key technology: Rugged scissor switch (patented)
• Actuation force: 0.8 N ±0.2 N
• Backlight: Adjustable white backlight
• Interface: USB
• Touchpad: fully sealed reinforced, 400 DPI; TouchPad size: 86.0 mm x 61.0 mm (L x W)
• Keyboard dimensions: 313.0 mm x 130.2 mm (L x W)
• Protection: IP67 front panel
• Operating temperature: -40ºC to +60ºC
• Storage temperature: -50ºC to +70ºC
• Standards: MIL-STD-461G, MIL-STD-810H
• Certifications: RoHS, CE, FCC
• Durability: key life > 5 million operations; MTBF > 20,000 h
• Mounting: Panel mount
• Additional: durable coating, anti-microbial surface, pry-resistant key caps, FN+Clean key for in-place cleaning
• Patent: 202422198937.6
