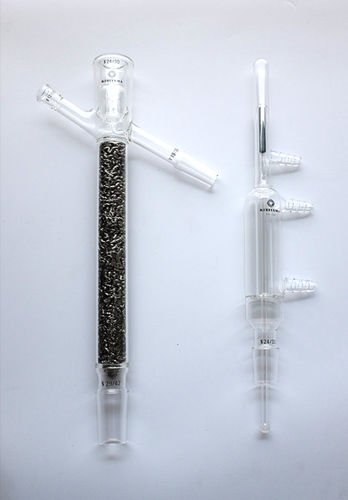

Borosilicate glass distillation column

energy-saving

Overview
Designed for the distillation of high boiling-point substances (for example, unsaturated fatty acids used in food and fine-chemical applications). The unit combines a jacketed distilling column with a compact distillation head to promote efficient vapor transfer to the condenser. Units are supplied in a range of standard glass joint sizes and flask capacities to match laboratory or production requirements.

Features

• Minimized free space in the distillation head to promote smooth vapor flow from the column to the condenser.
• Jacketed (vacuum) distilling column to reduce heat loss and improve thermal stability.
• Designed for operation under high vacuum; use with a high-power vacuum source is recommended.

Applications
Suitable for purification and fractionation of high boiling-point compounds, including the refining of high-grade unsaturated fatty acids. Applicable in laboratory R&D, pilot plants and production lines in food, oleochemical and specialty chemical sectors.

Technical specifications

• Purpose: distillation of high boiling-point substances (e.g., unsaturated fatty acids).
• Distillation head: minimized free volume to ensure rapid vapor discharge to the condenser.
• Thermal management: jacketed distilling column to limit heat loss.
• Vacuum requirements: intended for use with high-power/high-vacuum pumps.
• Configurations: available in various standard glass joint sizes and flask capacities.
