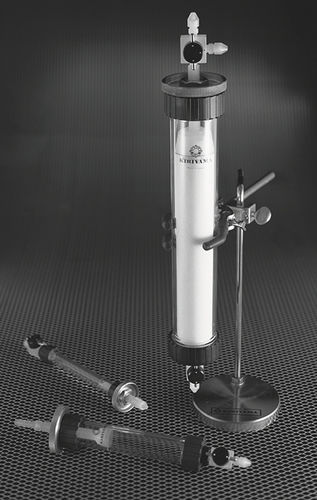

Liquid chromatography column

preparative liquidglass

Product overview
These chromatography systems are designed for separation and purification of active compounds from natural materials for applications in flavors, food and pharmaceutical fields. The systems are commonly used for silica gel column chromatography. The stationary phase is silica gel or gel; separation is achieved by differences in adsorption between the stationary phase and the mobile (developing) solvent. The system features a glass column and is suitable for both analytical and preparative chromatography.

Columns

• Chromato column (open column) — for standard column chromatography
• ILC column — for fine separation; ILC column can be operated under pressure and offers higher separation efficiency than open columns

Options and sizes
Various optional accessories and column sizes are available to match laboratory or production needs.
Sizes:
Inside diameter: 11 mm–100 mm Φ
Length: 150 mm–1450 mm

Technical specifications

• Stationary phase: Silica gel or gel
• Typical method: Silica gel column chromatography
• Column material: Glass
• Applications: Separation and purification of active ingredients from natural substances; flavors, food and pharmaceutical fields
• Uses: Analytical and preparative chromatography
• Principle: Separation by difference of adsorption force between stationary phase and developing solvent
• Column types: Chromato column (open); ILC column (pressure-capable, for fine separation)
• Available sizes: Inside diameter 11 mm–100 mm Φ; Length 150 mm–1450 mm
