Batch reactor

laboratoryprocessgas-liquid

Overview

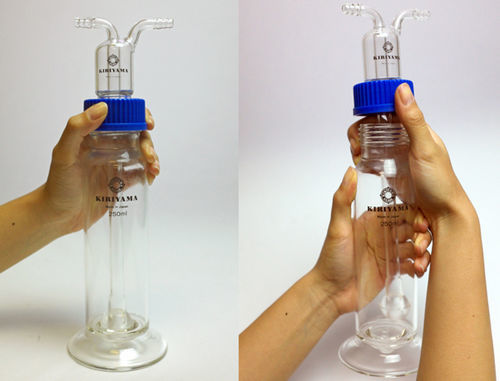

Unique bubble-size variable absorber/reactor developed by applying the ball-joint technique established by KIRIYAMA. The device provides adjustable bubble generation without using glass filters, simplifying maintenance and reducing fouling.

Key advantages

• No glass filters — minimizes fouling and blockage.
• Easy to disassemble and clean.
• Lower production and maintenance costs compared with previous designs.

Product types

• Screw type (GL thread)
• Glass joint type

Operation / Design notes
The only movable part is the lid, which controls bubble size and enables disassembly. Adjustment is done by lid movement, allowing simple, repeatable bubble-size control and straightforward handling on lab or process equipment.

Parts

• Screw bottle (or body)
• Center tube
• Cap / lid
• Fixing ring
• O-ring

Technical specifications

• Technology applied: ball-joint technique developed by KIRIYAMA.
• Bubble-size variable absorber/reactor — bubble size adjustable via lid movement.
• Two construction variants: screw type (GL thread) and glass-joint type.
• No glass filter incorporated — design reduces fouling and simplifies cleaning.
• Main movable component: lid (for bubble-size control and disassembly).
• Main components: screw bottle, center tube, cap, fixing ring, O-ring.
