Safety heating mantle Mono Heat

laboratorymultiple-volume

Overview

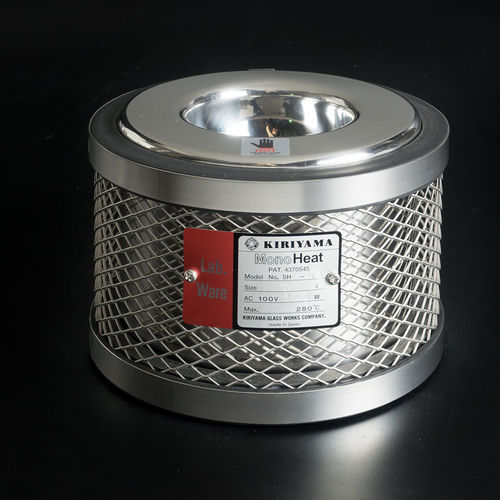

The Mono Heat mantle heater is a completely sealed, all-stainless-steel heating mantle designed for applications where open flames and fiber-based insulation are prohibited. The unit prevents ambient gas ingress and is engineered so that, if laboratory glassware breaks, samples cannot contact the internal heat source.

Key features

• Completely sealed mantle heater construction
• All-stainless-steel (SUS) components — no glass fibers in contact with the flask or exterior
• Protects flasks from open flames and external ignition sources
• Design prevents sample contact with internal heating elements if glassware fails
• Prevents ambient air/gas from entering the heater
• Suitable for facilities requiring explosion-proof or fire-restricted equipment

Specifications

• Product name: Mono Heat
• Type: Completely sealed mantle heater
• Material: All stainless steel
• Glass fibers: Not used
• Standard size range: 100 mL to 8000 mL
• Safety: Internal layout prevents liquid/sample contact with heating elements upon glassware breakage
• Gas protection: Sealed construction prevents ingress of ambient gases
• Typical applications: Chemical laboratories, semiconductor and other fire-restricted facilities

Customization

• Custom sizes and shapes available (cylindrical, square, rectangular, low-profile, etc.)
• Made-to-order production available from a single unit

Applications

• Heating where open flame is prohibited (laboratory hoods, classified areas)
• Semiconductor and cleanroom facilities with strict fire and explosion controls

Installation & notes
Mono Heat is intended for integration into controlled laboratory or industrial processes. Specify vessel dimensions and any site-specific requirements at order to ensure correct fit and compliance with facility safety standards.
