Overview
Ultrafiltration membrane cassettes package are a tangential flow membrane separation technology solution, widely used in pharmaceutical processes, particularly in downstream purification of biopharmaceuticals, including solution concentration, diafiltration, desalination, and separation and purification of components of varying molecular sizes.

Product summary

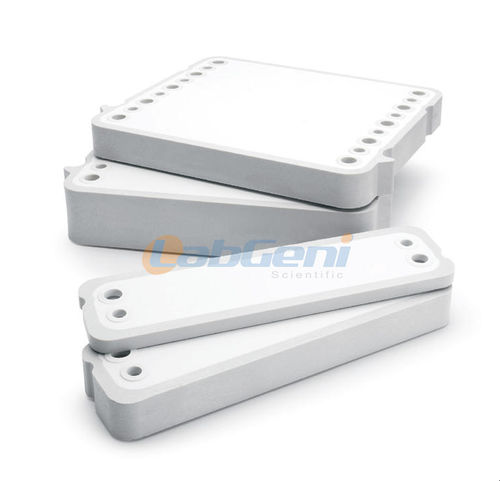

LABGENI TFF ultrafiltration membrane cassette package. Advanced automated packaging and an optimized dead-angle-free internal structure enable reliable rinsing and reduced fouling. Uses internationally recognized polyethersulfone (PES) membranes delivering high flux and retention, low protein adsorption, and broad temperature and pH compatibility.

Key features

• Molecular weight cutoffs available from 1 kDa to 1000 kDa.
• Six cassette sizes with identical flow channel length and height to enable linear scale-up from laboratory to pilot and production.
• Optimized automated packaging and dead-angle-free internal geometry for effective rinsing and low fouling.
• Adapter membrane closures compatible with mainstream membrane clamps; custom clamps available on request.

Typical application areas

• Biopharmaceutical downstream purification
• Solution concentration
• Diafiltration
• Desalination
• Separation and purification by molecular size

Advantages
LABGENI membrane cassettes provide consistent hydraulic geometry across sizes to support linear scale-up. PES membranes offer excellent flux/retention balance and low protein binding. Packaging and processing follow controlled quality systems suitable for bioprocess applications.

Adapter & closure
Adapter membrane closures are compatible with mainstream membrane clamps on the market. LABGENI can supply clamps meeting specified requirements.

Packaging & storage
Vacuum-packed in aluminum foil bags. PES membrane packages are preserved with 0.2N sodium hydroxide and 25% glycerol.

Included with each membrane package

• Serial number for full traceability
• Quality assurance certificate
• Two silicone gaskets
• User manual, material safety data sheet and validation guide available upon request

Material composition (table)
Filter membrane material: Polyethersulfone
Support materials: Polyethersulfone
Sieve: Polypropylene
Packaging materials: Silicone
Gasket: Silicone

Regulatory information (table)
Biosafety: Complies with USP <87>, USP <88> class VI standards
Bacterial endotoxins: Comply with <0.25 EU/ml
Insoluble particles: Compliant with USP <788> standards
Quality System: R&D and production processes comply with ISO 9001 and ISO 13485 quality management systems

Size parameters
Membrane package size | Application
0.02 m2 | R&D, laboratory
0.1 m2 | R&D, laboratory, pilot
0.5 m2 | Pilot production and mass production
1.0 m2 | Pilot production and mass production
2.5 m2 | Pilot production and mass production
5.0 m2 | Pilot production and mass production

Ordering information (codes explained)
Series/General: GU2 = Series 2
Membrane type: E = PES; V = PVDF; C = RC
Molecular weight cut-off codes (examples): 001 = 1 kDa; 002 = 2 kDa; 005 = 5 kDa; 008 = 8 kDa; 010 = 10 kDa; 020 = 20 kDa; 030 = 30 kDa; 050 = 50 kDa; 100 = 100 kDa; 300 = 300 kDa; 500 = 500 kDa; 750 = 750 kDa; 1000 = 1000 kDa
Runner / channel types: F = fine; C = coarse; V = suspended
Effective membrane area codes: 002 = 0.02 m2; 010 = 0.1 m2; 050 = 0.5 m2; 100 = 1.0 m2; 250 = 2.5 m2; 500 = 5.0 m2
Application level: P = bioprocess; F = food; W = water
Example structure: GU2 - [MembraneType] [MWCO code] [Runner] [Area code] - [Application] (custom suffixes if any)

Traceability & quality
Each membrane package is serial-numbered for full traceability and supplied with a QA certificate and validation support documentation.

Technical specifications

• Brand: LABGENI
• Series / Model designation: BIOTFFC
• SKU / Series tag: BIOTFFC Series
• Membrane material: Polyethersulfone (PES) (primary); other membrane materials available (PVDF, RC)
• MWCO range: 1 kDa to 1000 kDa
• Available effective membrane area: 0.02 m2, 0.1 m2, 0.5 m2, 1.0 m2, 2.5 m2, 5.0 m2
• Support/sieve materials: Polyethersulfone support; polypropylene sieve
• Gasket / packaging material: Silicone
• Packaging: Vacuum sealed aluminum foil with preservation solution (0.2N NaOH + 25% glycerol for PES)
• Regulatory: USP <87>/<88> class VI biosafety compliance; bacterial endotoxin <0.25 EU/ml; USP <788> insoluble particle compliance
• Quality system: ISO 9001 and ISO 13485 compliant R&D and production
