Membrane filtration unit MSE-A1812

for the food industryfor waterfor wastewater treatment

APPLICATION
Applied to biological, pharmaceutical, food, beverage and chemical environmental protection industries.

Process principle
In order to achieve separation and purification, a permeation membrane is selected as the separation medium; a driving force is applied on both sides of the membrane so that selected components permeate through the membrane.

Features
Operate under room temp. - Very little loss of active ingredients, especially suitable for heat sensitive substances.
No phase change - Maintain the original flavor, and consume very low energy.
No chemical changes - Typical physical separation process, without chemical reagents and additives, products are not contaminated.
Good selectivity - Material separation can be done in the molecular range.
Wide range of applications & strong adaptability - Large or small scale, continuous or intermittent, simple process, convenient operation and easy automation.

Range classification
Divided into microfiltration (MF), ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO) according to membrane pore size.

Basic information

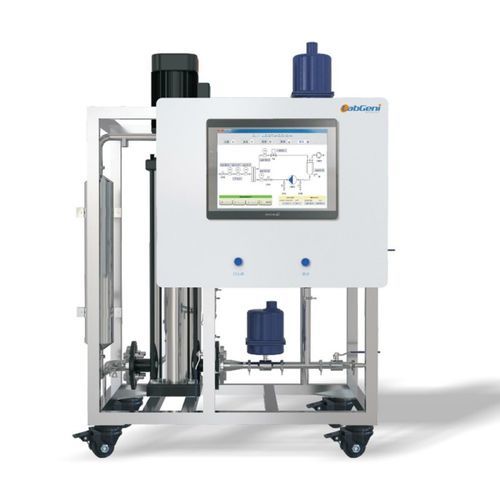

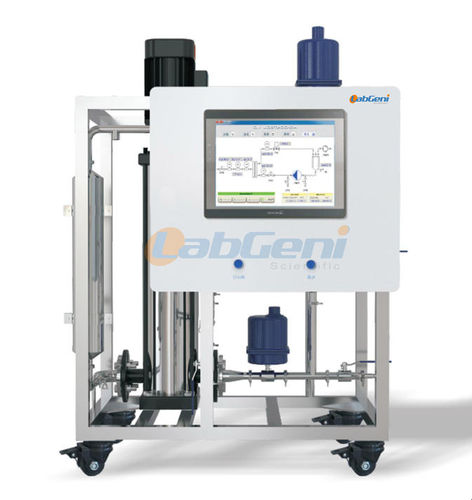

• Model: MSE-A1812
• Processing capacity: 2 ~ 7 L/H
• Membrane element: GE imported roll type membrane; single membrane area 0.26 m²
• Power unit: Imported GRUNDFOS pump, 0 ~ 26 Bar (frequency adjustable)
• Material circulation tank: Effective volume V = 10 L

System overview

• Laboratory type LABGENI® MSE-A1812 (Automatic) mainly used in separation and purification by UF, NF and RO; can be used for filtration, decoloration, desalination, purification and concentration.
• Membrane selection is based on molecular weight/size: applicable for materials from ~0.03 μm to molecular-scale separations.
• Designed for easy cleaning, maintenance and flexible use.

Power unit (summary)
Imported GRUNDFOS pump; variable frequency control adjustable from 20 to 50 Hz; flow rate 200 ~ 1100 L/H; pressure 0 ~ 26 Bar adjustable.

Membrane & membrane shell (summary)
3 parallel membrane wall; connection by high-pressure clamp quick release (pressure rating 20 MPa); shell material AISI 304; external surface brushed, internal mirror polished; food hygiene grade.

Roll type membrane elements (summary)
3 pieces GE imported roll membrane; model 1812 industrial separation membrane, anti-fouling. Scope includes MF, UF, NF, RO. Compatible with different brand 1812 membranes (including domestic equivalents) per user requirement.

Control cabinet (summary)
Field instrument control cabinet; PID instrument control with automatic adjustment; sensors include temperature electrode, pressure sensor, frequency conversion motor; flow meter (field); instrument: multi-function display + control instrument and frequency converter.

Material & piping (summary)
Contact parts: AISI 304 stainless steel and sanitary hoses. Non-contact parts: AISI 304 with carbon + spray paint. Pipeline: sanitary seamless stainless steel pipes. Valves: food-grade sanitary direct-pass ball valves and diaphragm valves.

Specification summary (high level)
Processing capacity: 2 ~ 7 L/h
Power unit: Imported GRUNDFOS pump, frequency conversion control with high-voltage protection settings
Working pressure: 0 ~ 26 bar adjustable
Membrane element: GE imported roll membranes (1 piece standard), single membrane area 0.26 m², membrane element length 298.5 mm; membrane shell AISI 304; anti-pressure 20 MPa; interception accuracy >95% (standard material test); MWCO examples: 200KD, 100KD, 10KD, 5KD, 2K, 1K, 600D, 300D, 150D, 100D, RO (customizable)
Valves & flow meter: Imported automatic ball valve; imported liquid mass flow meter
Electric control cabinet: SIEMENS PLC control module; 15-inch LCD HD touch screen; control & recording for temperature, pressure, flow, pump frequency; curve & data record/export; preset alarms for temperature and pressure
Material circulation tank: AISI 304, effective volume 10 L
System upgrade options: material, heat exchanger, flowmeter, valve, pump customization per user environment; semi-automatic or fully automatic control available; remote/mobile control options can be customized
Dimensions: 630 x 580 x 1100 mm
Weight: 46 kg

Notes
System can be tailored: material, heat exchanger, flowmeter, valves, pumps, and control systems can be customized to match user processes and environments. The membrane type and pore-rating must be selected according to the separation target and desired molecular-weight cutoff.

caractéristiques / spécifications techniques

• Model: MSE-A1812
• Processing capacity: 2 ~ 7 L/h
• Membrane element: GE imported roll membrane; single membrane area 0.26 m²; element length 298.5 mm; membrane types: MF/UF/NF/RO (customizable MWCO)
• Power unit: Imported GRUNDFOS pump; variable frequency control (20–50 Hz); flow 200–1100 L/h; pressure 0–26 bar adjustable
• Membrane shell & piping: AISI 304 stainless steel; high-pressure clamp quick disconnect; sanitary seamless stainless steel pipeline; internal mirror polish
• Material circulation tank: AISI 304, effective volume 10 L
• Valves & instruments: Imported automatic ball valves and liquid mass flow meter; diaphragm valves available
• Control: SIEMENS PLC; 15" touch LCD; PID control for temperature/pressure; pump frequency regulation; curve and data recording and export; preset alarms
• Size (LxWxH): 630 x 580 x 1100 mm
• Weight: 46 kg
• Optional upgrades: semi/fully automatic systems, remote/mobile control, customized heat exchangers and components
