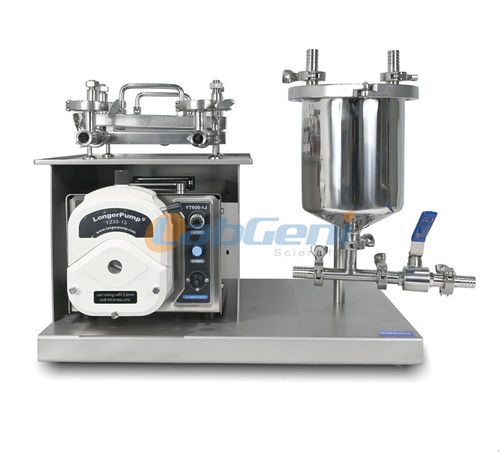

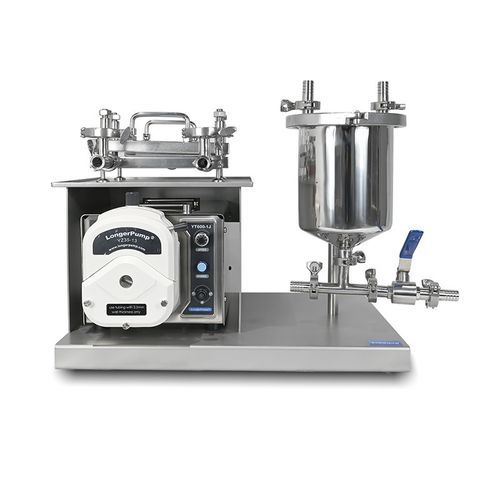

Particulate ultra-filtration unit BIO-TFF05

membraneplatewith filter pump

Short description

• Designed for 0.5 m² flat membrane packs
• Precision bench-top TFF unit for microfiltration and ultrafiltration
• Supports membranes from major brands (Merck, Pall, Sartorius, LabGeni)
• Compatible membrane chemistries: Biomax, PLCCC, PLCGC, PLCTK, PVDF, modified cellulose
• Supported MWCO / pore sizes: 5 kDa, 8 kDa, 10 kDa, 30 kDa, 50 kDa, 100 kDa, 300 kDa, 500 kDa, 0.2 µm
• Optional auto control module (PLC/HMI)
• Frame: SS304; product-contact parts: AISI 316 / 316L

System overview
Tangential flow filtration (TFF), also called cross-flow filtration (CFF), directs feed tangentially across flat membrane surfaces to generate shear that limits cake formation and keeps filtration rate stable. The BIO-TFF05 is a compact bench-top TFF set for laboratory and pilot-scale process development, enabling microfiltration and ultrafiltration using box-type flat membrane plates.

Applications

• Cell harvest and clarification of cell culture fluids
• Recovery, concentration and buffer exchange for antibodies and recombinant proteins
• Concentration and diafiltration/desalting of proteins, peptides and nucleic acids (DNA/RNA/oligonucleotides)
• Removal of particulate and small impurities from water, buffers or media; continuous equal-volume dialysis

System features

• High sample recovery while preserving biological activity
• Stable flux with continuous recirculation to prevent gel-layer buildup on membranes
• Easy scale-up path from lab to larger production reducing development time
• Universal stainless-steel fixture compatible with major flat-membrane packages; supports 1–3 membrane plates
• Modular design; pump and membrane configuration selectable per process needs
• Stainless-steel support frame with raw-material tank for siphon feed and aseptic continuous operation

Components / Power unit

• Peristaltic pump (industry-grade)
• Max flow: 2 L/min; Max pressure: 0.3 MPa
• Control: start/stop, rotation direction, speed control; optional control interfaces (0–5 V, 0–10 V, pulse/frequency)
• Stainless-steel fixture (AISI 316L) with sanitary quick-connects
• Raw material tanks: selectable volumes (1 L, 2 L, 3.5 L, 5 L, 10 L), customizable

Flat membrane packs

• Filtration area: supports 0.5 m² flat membrane (bench options for 0.1 m² available)
• Membrane materials: Biomax, modified cellulose (PLC family), PVDF and equivalents
• Optional membrane brands: Merck, Sartorius, PALL and equivalents

Optional items

• Auto control module (PLC/HMI) for process automation
• Alternative pump control signals or upgraded peristaltic pumps
• Additional membrane plates or different membrane chemistries/MWCOs
• Customized tank volumes and sanitary fittings

Technical specifications

• Model: BIO-TFF05
• Filtration area: 0.5 m² (flat membrane)
• Supported membrane brands: Merck, Pall, Sartorius, LabGeni (and equivalents)
• Supported membrane types: Biomax, PLCCC, PLCGC, PLCTK, PVDF, modified cellulose
• Supported MWCO / sizes: 5 kDa, 8 kDa, 10 kDa, 30 kDa, 50 kDa, 100 kDa, 300 kDa, 500 kDa, 0.2 µm
• Pump: peristaltic pump (max flow 2 L/min; max pressure 0.3 MPa)
• Control: start/stop, direction, speed control; optional analog/digital interfaces (0–5 V, 0–10 V, pulse/frequency)
• Material: frame SS304; product-contact parts AISI 316 / 316L stainless steel
• Raw material tank options: 1 L, 2 L, 3.5 L, 5 L, 10 L (customizable)
• Auto control module: optional
• Typical applications: cell clarification, protein concentration, desalting/diafiltration, antibody recovery, nucleic acid concentration
• SKU: BIO-TFF05
