Membrane filtration system MSE-1812

for liquidsfor the food industryfor chemicals

APPLICATION
Applied to biological, pharmaceutical, food, beverage and chemical environmental protection industries.

PROCESS PRINCIPLE
The permeation membrane is used as the separation medium. A driving force is applied across the membrane so that selected components from the feed side permeate through the membrane for separation and purification.

FEATURES

• Operate at ambient temperature: minimal loss of active ingredients, suitable for heat-sensitive substances
• No phase change: preserves original flavor, low energy consumption
• No chemical change: physical separation without chemical reagents or additives, avoids contamination
• High selectivity: separation at molecular scale
• Wide applicability and adaptability: suitable for small or large scales, continuous or batch operation; simple process, easy operation and automation

RANGE CLASSIFICATION
Divided into microfiltration (MF), ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO) according to membrane pore size.

PRODUCT

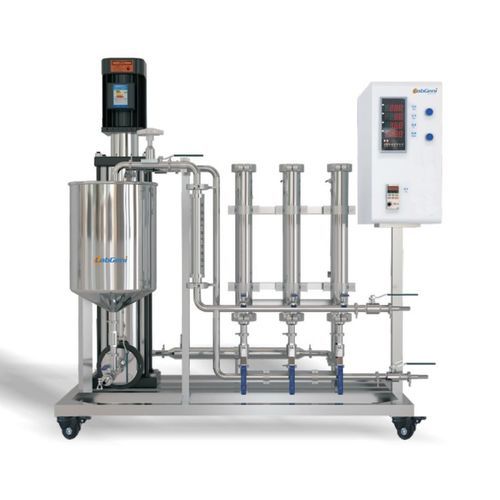

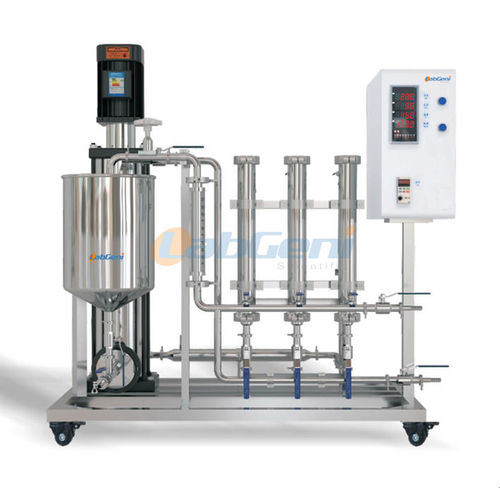

MSE-1812 roll-membrane separation ultrafiltration equipment

BASIC INFORMATION

• Model: MSE-1812
• Processing capacity: 3 ~ 20 L/H
• Membrane element: GE imported roll-type membrane, single membrane area 0.26 m²
• Power unit: imported GRUNDFOS pump
• Pressure range: 0 ~ 16.8 Bar (frequency adjustable)
• Material circulation tank: effective volume V = 16 L

SYSTEM OVERVIEW

• Laboratory type LABGENI® MSE-1812 (manual) mainly used for separation and purification by UF, NF and RO; applicable to filtration, decolorization, desalination, purification and concentration
• Membrane selection is based on molecular weight/particle size; capable of separating from ≈0.03 μm to molecular-weight ranges (down to ≈100 Dalton)
• Advantages: easy cleaning and maintenance, high operational flexibility

POWER UNIT

• Imported GRUNDFOS pump
• Variable frequency control, adjustable from 20 to 50 Hz
• Flow rate: 200 ~ 1100 L/H
• Pressure: 0 ~ 16.8 Bar adjustable

MEMBRANE SHELL

• 3 parallel membrane walls
• Connection: high-pressure clamp quick-release connection, pressure rating 20 MPa
• Material: AISI 304
• Surface treatment: exterior brushed, interior mirror-polished (food hygiene grade)

ROLL-TYPE MEMBRANE ELEMENTS

• 3 GE imported roll membranes
• Model: 1812 industrial separation membrane, anti-fouling
• Scope: MF, UF, NF, RO
• Single membrane area: 0.26 m²; element length: 298.5 mm
• Membrane aperture / MWCO options (examples): 200KD, 100KD, 10KD, 5KD, 2K, 1K, 600D, 300D, 150D, 100D; RO and other variants available/customizable

CONTROL CABINET

• Field instrument control cabinet
• Control mode: PID instrument control, automatic adjustment
• Sensors: temperature electrode, pressure sensor, frequency-conversion motor
• Flow meter: field flow meter, manual adjustment
• Instrumentation: integrated display + control instrument, frequency converter regulator

MATERIAL / STANDARD

• Contact parts: AISI 304 and sanitary hose
• Non-contact parts: AISI 304, carbon steel with spray paint
• Pipeline: sanitary seamless stainless steel pipe
• Valves: food-grade sanitary straight-through ball valves and diaphragm valves

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Model: MSE-1812
• Processing capacity: 3 ~ 20 L/h
• Power unit: imported GRUNDFOS pump with frequency-conversion control and high-voltage protection settings
• Working pressure: 0 ~ 16.8 Bar (adjustable)
• Membrane: GE imported roll-type membranes ×3; single membrane area 0.26 m²; element length 298.5 mm; anti-fouling; multiple MWCO options and RO available
• Valves & flowmeter: sanitary ball valve and rotor flowmeter
• Pipeline: AISI 304 sanitary polished; includes stainless steel pipe heat exchanger
• Electric control: online monitoring of temperature, pressure and flow; pump frequency-conversion controller with real-time speed/frequency display; temperature and pressure preset alarm
• Material circulation tank: AISI 304, effective volume = 16 L
• System upgrade: materials, heat exchanger, flowmeter, valves, pumps customizable; semi-automatic and automatic control possible; remote / mobile control options available per user requirements
• Size: 875 × 655 × 1205 mm
• Weight: 70 kg
