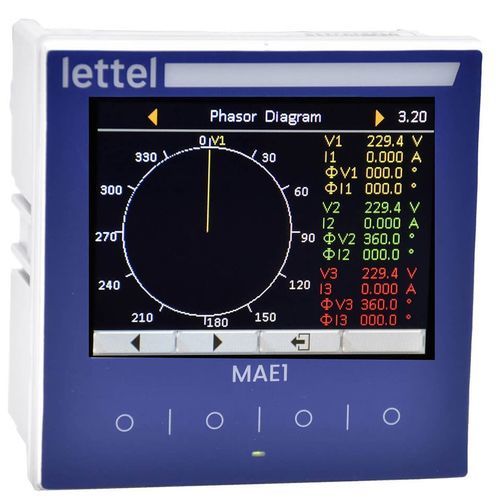

Multifunction power metering MAE-1 series

The MAE-1 measurement unit is a high-performance instrument for precise and comprehensive analysis of an electrical circuit: - **Electrical:** - Two versions available: - Auxiliary power supply 80 ... 270 VAC - Auxiliary power supply 24 VDC - Measurement unit for single-phase, three-phase, or four-wire networks. - Indirect connection on current transformers with 1A or 5A secondary, and/or voltage transformers. - Active energy measurement accuracy class 0.2S. - **Physical:** - Flush mounting in 91×91 mm cutout. Case dimensions 96×96, depth 52.8 mm. - Color TFT display. - Front panel IP65. - **Communication:** - 1 configurable pulse transmitter. - Fully programmable Modbus port (parity, speed, frame). - **Relay Inputs and Outputs:** - 2 digital inputs. - 2 relay outputs. - **Multi-measurement:** Measures a multitude of electrical quantities for a complete and precise circuit analysis: - Active and reactive energies, imported and exported - Voltage - Current - Active, reactive, and apparent powers - Power factor - Frequency - Demands - Extreme values - Imbalances - Harmonics up to the 63rd order - And many more... - **Data Recording:** The measurement unit records all measured data and events: - Recording and timestamping of micro-outages - Load curve evolution - Device management - Minimum or maximum threshold alarms These data can be viewed using the free software provided and exported in .csv format. - **Circuit Control and Alarms:** The 2 relays are programmable for minimum or maximum current, voltage, power, phase imbalance thresholds, allowing: - Alerting in case of abnormal electrical signal - Protecting electrical circuits - Performing alarm functions in case of failure or inappropriate signal - Automatic load shedding in case of overload. - **Electrical Circuit Status Feedback:** The 4 digital inputs allow knowing the status of auxiliary circuits or devices and alerting in case of failure or circuit interruption. - **Additional Modules:** Possibility to install up to 4 Max modules at the back of the case, to add additional communication, measurement, or management functionalities. - **Ergonomic Interface:** The color TFT screen ensures data presentation in the form of diagrams or vector graphics. Navigation is intuitive thanks to clearly identifiable sub-menus. - **Remote Supervision:** A complete software is provided with the measurement unit, allowing data consultation and relay output control from a computer. - **High Precision:** Class 0.2S for active energy and 0.2% for instantaneous measurements. - **Conformities:** CE, RoHS, REACh. - **Applicable Standards:** IEC61000-4, IEC61010-1, IEC62053-23, class 2, IEC62053-22, class 0.2S. - **Associated Products:** - FM communication modules - Other functions - Compatible current transformers - **Resources:** - Electrical measurement units - Understanding harmonic disturbances - Negative energy problem: diagnosis and technical solutions - Article: MAE1 Measurement Unit **Characteristics / Technical Specifications:** - Auxiliary power supply: 80 ... 270 VAC or 24 VDC - Network: single-phase, three-phase, or four-wire - Connection: 1A or 5A current transformers - Active energy accuracy: class 0.2S - Display: color TFT - Front panel: IP65 - Digital inputs: 2 - Relay outputs: 2 - Communication: programmable Modbus - Dimensions: 96×96 mm, depth 52.8 mm - Mounting: flush, 91×91 mm cutout - Conformities: CE, RoHS, REACh - Standards: IEC61000-4, IEC61010-1, IEC62053-23, IEC62053-22
