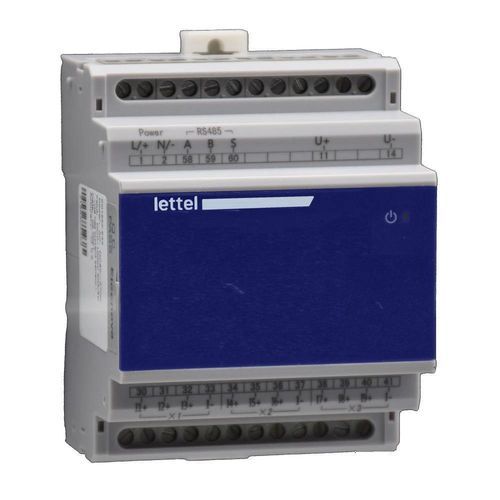

Current measuring module MM4-DC12

Hall effectindustrialtransformer

The MAP4-DC12 module allows the measurement of 12 direct current circuits. It is powered by the MAP4-DC9 central unit and features a 4V DC current input for Hall effect current sensors. This module is designed for DIN rail mounting, with a 4-module width housing. - **Electrical:** Measures up to 12 direct current circuits. Powered by the MAP4-DC9 central unit. 4V DC current input for Hall effect current sensors. - **Physical:** DIN rail mounting, 4-module width housing. - **Advantages:** Measures up to 12 circuits, totaling 21 circuits with the associated MAP4-DC9 central unit. - **Standards and Certifications:** CE, RoHS, REACh. - **Applicable Standards:** IEC 61000-4-2/-3/-4/-5/-6/-8/-11 - **Associated Products:** Hall effect current sensors or measurement shunts (see current transformers section). - **Resources:** - Electrical measurement units - Negative energy problem: diagnosis and technical solutions **Features / Technical Specifications:** - Measures up to 12 direct current circuits - Powered by MAP4-DC9 central unit - 4V DC current input for Hall effect sensors - DIN rail mounting - 4-module width housing - Compliance: CE, RoHS, REACh - Standards: IEC 61000-4-2/-3/-4/-5/-6/-8/-11
