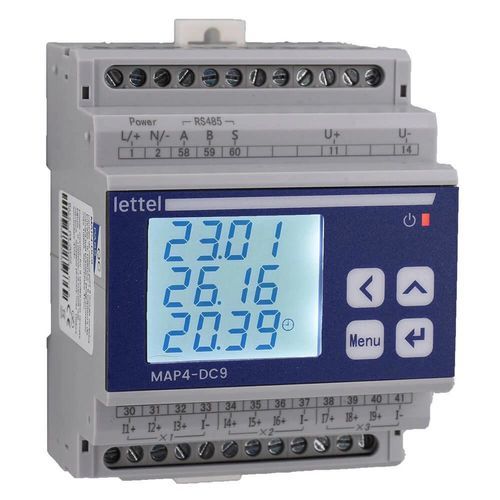

MAP4-DC9 modular measuring unit for 9 DC circuits Product Details: - The MAP4-DC9 measuring unit allows measurement of up to 9 DC circuits. Features: - Electrical: Measurement of 1 to 9 DC circuits. Auxiliary power supply: 80 … 270 VAC. Voltage input: direct up to 1000 VDC max. Current input: 4VDC for Hall effect current sensors. - Physical: DIN rail mounting, 4-module wide housing. - Communication: Fully programmable Modbus port (parity, speed, frame). Functionalities: - Multi-measurement: Measures main electrical quantities for detailed analysis of measured circuits: - Active energy - Voltage - Current - Active power - Demands - Extreme values - Recording: Monthly indexes of active energies for the last 6 months, current and previous day. Data retrievable via Modbus communication. Advantages: - Accuracy: Class 1% for active energy and 0.5% for instantaneous measurements. - Recorder function: For periodic data logging applications. - Multi-circuit: Measures up to 9 circuits, expandable to 21 circuits by adding the MAP4-DC12 additional module. Standards and Certifications: - Compliance: CE, RoHS, REACh. - Applicable standards: IEC 61000-4-2/-3/-4/-5/-6/-8/-11 Associated Products: - Additional modules: Modules clip onto the side of the unit and add functionalities: - MMC2 modules: Lora communication or relay outputs and digital inputs. - MM4-DC12 module: measurement of 12 additional DC circuits, for a total of 21 circuits. - Current sensors: Hall effect or shunt measurement. See current transformer section. - Compatible Hall effect current sensors: - Open current sensor MTCCO - Closed current sensor MTCCF - Additional module: - The MM4-DC12 module allows measurement of 12 additional circuits. Technical specifications: - Measures up to 9 DC circuits (expandable to 21 with additional module) - Auxiliary power supply: 80–270 VAC - Voltage input: direct up to 1000 VDC - Current input: 4VDC for Hall effect sensors - DIN rail mounting, 4-module width - Fully programmable Modbus port - Accuracy: 1% (active energy), 0.5% (instantaneous) - Compliance: CE, RoHS, REACh - Standards: IEC 61000-4-2/-3/-4/-5/-6/-8/-11
