Description

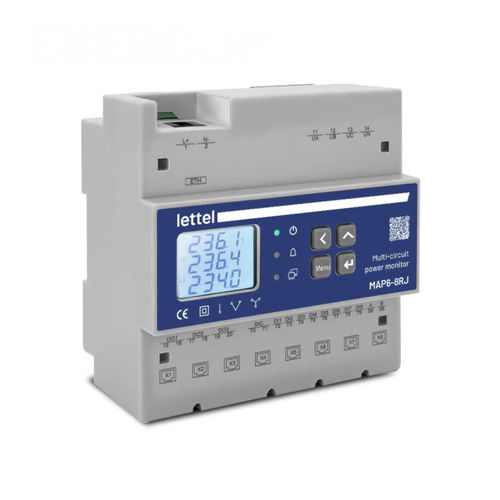

The MAP6-8RJ series provides comprehensive and precise measurement for up to 8 three‑phase circuits or 24 single‑phase circuits. Measurements are viewable on the integrated scrolling display or via supplied software. Current inputs use Enerclip RJ12 connectors.

Characteristics

• Electrical: Measures up to 24 single‑phase circuits or 8 three‑phase circuits with or without neutral; auxiliary supply 80 … 270 VAC; indirect connection via Enerclip (RJ12) current transformers and/or voltage transformers.
• Physical: DIN-rail mounting; enclosure width 6 modules (108 mm).
• Communication (by version): RS485 Modbus; Ethernet TCP/IP; LoRa; pulse transmitters.
• Accuracy: Class 0.5S for active energy.
• Multi-measure: Active/reactive energies (import/export); voltage; current; powers (active, reactive, apparent); power factor; frequency; demands; extreme values and unbalance; harmonics up to order 31.

Functions

• Applications: Monitoring and supervision of electrical networks in industrial and commercial environments; energy management; anomaly detection; alarm triggering; installation follow-up and energy optimization.
• Supervision: Circuit renaming; integrated scrolling display; supplied software for centralized visualization; phase sequence selection U/I; programmable digital inputs and relay outputs.
• General: Programmable alarms; circuit renaming; U/I sequence selection; 8 digital inputs; 3 programmable relay outputs.

Related products and extensions

• Additional MMC2-R modules for extended functions (e.g. LoRa, GPRS, NB‑IoT communications, extra relay outputs).
• Compatible with closed and open current transformers and Rogowski coils (e.g. MSC-TCF, MSC-TCO, MSC-TCR).
• Can be paired with a radio gateway (e.g. MGLW868) for LoRaWAN exchanges.

Variants and order codes
Order code | Communication | Stock
MAP6-8RJ | RS485 Modbus RTU | instock
MAP6-8RJ-TCP | RS485 Modbus RTU and Modbus TCP/IP | instock
MAP6-8RJ-L | RS485 Modbus RTU and LoRa | instock

Resources
Presentation documents available: Enerclip range brochure (pdf, 9.3 MB).

Specifications / technical data

• Measurement: up to 24 single‑phase circuits or 8 three‑phase circuits
• Auxiliary supply: 80 … 270 VAC
• Current connection: Enerclip (RJ12) current transformers and voltage transformers
• Mounting: DIN-rail
• Enclosure: width 6 modules (108 mm)
• Communications: RS485 Modbus RTU; Modbus TCP/IP (TCP version); LoRa (L version)
• Display: integrated scrolling display
• I/O: 8 digital inputs; 3 programmable relay outputs
• Accuracy: class 0.5S for active energy
• Measured values: active/reactive energies, voltage, current, powers, power factor, frequency, demands, extreme values, unbalance
• Harmonics: up to order 31
• Compliances: CE, RoHS, REACh
