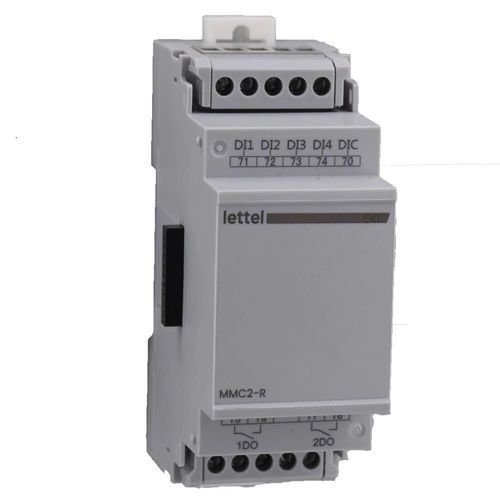

Digital relay module MMC2-R

DIN rail mountedwith LED indicator2-channel

The MMC2 module attaches to the side of MAP4-34xx measurement centers. It extends the functionalities of the central unit: - Electrical: 4 digital inputs and 2 relay outputs. - Physical: The modules clip onto the side of the MAP4-34xx measurement center housing. 2-module width housing. - 4 digital inputs: Their state (open or closed) can be displayed on the MAP4-34xx central unit. The inputs can pause energy counting. - 2 relay outputs: Controllable via Modbus or programmable on threshold attainment to perform alarm or load shedding functions. - Associated products: Compatible with MAP4-3415 and MAP4-34RJ measurement centers. - Technical resources: Technical booklets available: Electrical measurement units, Understanding harmonic disturbances - Technical Specifications: - 4 digital inputs - 2 relay outputs - Clips onto the side of MAP4-34xx measurement centers - 2-module width housing - Relay outputs controllable via Modbus or programmable on threshold - Inputs can pause energy counting - Compatible with MAP4-3415 and MAP4-34RJ
