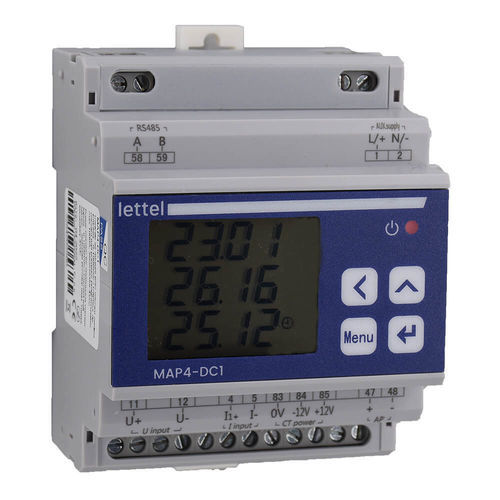

Energy meter power meter MAP4-DC1 series

active powerDCdigital

The MAP4-DC1 meter measures and displays the main electrical quantities of a DC circuit. - Electrical: - Measurement of a DC circuit. - Auxiliary power supply 80 … 270 VAC. - Voltage input: direct up to 1000 VDC max. - Current input for Hall effect current sensor with 4VDC secondary. - Integrated 12VDC output for powering the Hall effect current sensor. - Physical: - DIN rail mounting, 4-module wide housing. - Communication: - Pulse emitters on active energy. - Fully programmable Modbus port (parity, speed, frame). - One digital input. - Multi-measurement: - Measurement of main electrical quantities for detailed circuit analysis: - Active energy up to 4 tariffs with recording of monthly indexes for the last 12 months and daily for the last 10 days - Voltage - Current - Active power - Demands - Extreme values - Advantages: - Active energy recording: Last three months viewable on the display. Last twelve months and last 10 days viewable via Modbus. - Accuracy: Class 1% for active energy and 0.5% for instantaneous measurements. - Standards and Certifications: - Compliance: CE, RoHS, REACh. - Applicable standards: IEC 61000-4-2/-3/-4/-5/-6/-8/-11 - Associated Products: - Additional modules: MMC2 modules clip onto the side of the center and add features such as Lora communication or relay outputs and digital inputs. - Current sensors: Hall effect or shunt measurement. See the current transformer section. - Compatible Hall effect current sensors: - Open Hall effect current sensor MTCCO - Closed Hall effect current sensor MTCCF - Variants and order codes: - The measurement center is offered with 4VDC input for Hall effect sensor or 75mV for shunt measurement. - Order code: MAP4-DC1-4V, Current input: 4V – Hall effect sensor, Stocked product: In stock - Order code: MAP4-DC1-75MV, Current input: 75mV – Shunt, Stocked product: In stock - Technical features / specifications: - Measures and displays main DC circuit electrical quantities - Auxiliary power supply: 80–270 VAC - Voltage input: direct up to 1000 VDC max - Current input: Hall effect sensor (4VDC) or shunt (75mV) - Integrated 12VDC output for Hall effect sensor - DIN rail mounting, 4-module width - Pulse output for active energy - Fully programmable Modbus port - One digital input - Multi-tariff energy measurement and storage - Accuracy: 1% for active energy, 0.5% for instantaneous values - Compliance: CE, RoHS, REACh - Standards: IEC 61000-4-2/-3/-4/-5/-6/-8/-11
