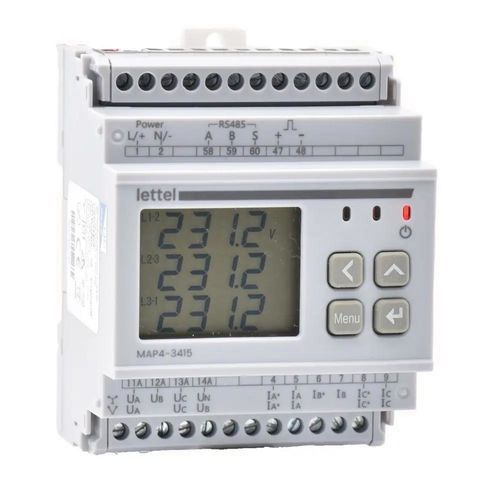

Single-phase electric energy meter MAP4-3415

three-phaseDIN raildigital

The MAP4-3415 measurement unit combines performance with ease of use: - Electrical: - Single-phase, three-phase, or four-pole network. - Auxiliary power supply 80 … 270 VAC. - Indirect connection to current transformers with 1A or 5A secondary, and/or voltage transformers. - Active energy measurement accuracy class 0.5S. - Physical: - DIN-rail mounting, 4-module wide enclosure. - Communication: - Pulse emitters on active energy. - Fully programmable Modbus port (parity, speed, frame). - Multi-measurement: - Measurement of main electrical quantities for detailed circuit analysis: - active and reactive energies, imported and exported - voltage - current - active, reactive, and apparent power - power factor - frequency - demands - extreme values - imbalances - harmonics up to the 31st order… - Advantages: - Usage: Display of measurements on a scrolling display or via comprehensive software provided free of charge. - Accuracy: Class 0.5S for active energy. - Standards and certifications: - CE, RoHS, REACh. - Available variants: - Multi-circuit measurement: The MAP4-34RJ unit allows measurement of 4 three-phase circuits or 12 single-phase circuits. - Associated products: - Additional modules: MMC2 modules clip onto the side of the unit and add features such as Lora communication or relay outputs and digital inputs. - Compatible with: - 1A or 5A current transformers - Additional module MMC2-R to add digital inputs and relay outputs. - Resources: - Electrical measurement units - Understanding harmonic disturbances - Negative energy problem: diagnosis and technical solutions - Technical specifications: - Model: MAP4-3415 - Network: single-phase, three-phase, or four-pole - Auxiliary power supply: 80–270 VAC - Connection: indirect via 1A or 5A current transformers - Accuracy: class 0.5S for active energy - Mounting: DIN rail, 4 modules - Communication: Modbus, pulse output - Certifications: CE, RoHS, REACh
