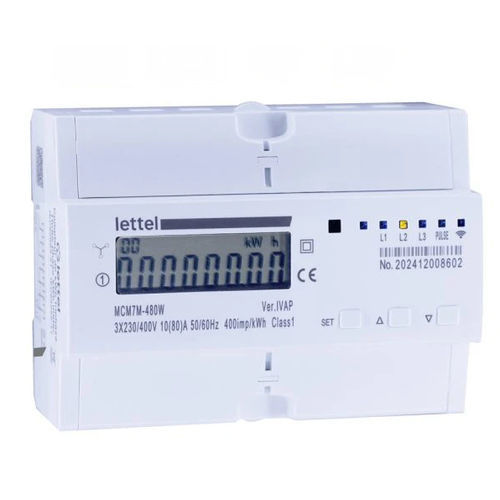

Three-phase electric energy meter MCM7M-480W

DIN railsmart50 Hz

The monitoring of consumption via a smartphone application and the integrated relay allow the MCM7M-480W tetra meter to meet a multitude of applications: - Electrical: Multi-function energy meter for tetra-phase network 230/400V 50/60Hz. Direct connection up to 80A per phase. - Measured data: The sub-meter measures a multitude of electrical quantities: Active energy (kWh): imported, exported, total, imported-exported. Reactive energy (kVArh): total. Instantaneous values per phase and total: Voltage (V), current (A), active power (kW), reactive power (kVAr), power factor (cos Phi), frequency (Hz). - Measurement accuracy: Class 1 for energies and class 0.5 for instantaneous values. - Wifi communication: The sub-meter can connect to the local Wifi network to be fully controlled via a free home automation smartphone application. - Contactor function: The internal relay allows cutting off the 3 phases of the measured circuit. It can be switched manually or programmed to trigger at thresholds, according to a time schedule, or based on electrical consumption, etc. - Physical: DIN rail mountable meter, 7-module wide housing. - Electricity consumption monitoring: Consumption histories are recorded and viewable on the smartphone application. Hourly, daily, and monthly indexes are displayed on a simple and intuitive interface. - Alarm and circuit protection: The circuit can be programmed to cut off at minimum or maximum thresholds, for load shedding, alarm, or protection functions for circuits and electrical devices. The smartphone application allows sending notifications, SMS, or calls in case of alarm triggering. - Remote circuit control: The Wifi-controllable contactor function allows activating or deactivating a device or electrical circuit remotely. Very useful, for example, to activate heating remotely. - Time scheduling: The smartphone application allows programming the internal relay according to a time schedule, to activate electrical devices within a defined time slot (clock function). - Data export: The history of data measured by this single-phase meter can be exported by email in CSV format. - Prepayment: The application allows allocating a certain number of kWh. Once exhausted, the internal relay cuts the circuit. - Integration simplicity: Meter housing only 1 module wide (18 mm). - Circuit control: The integrated cut-off relay allows controlling electrical devices remotely or according to a multitude of conditions. - Extended features: Prepayment, time scheduling, consumption monitoring, data export, alarm, etc. The MCM7M-480W meter meets a multitude of applications. - Compliance: CE, RoHS. - Applicable standards: IEC62053-21, IEC62052-11. - Technical features / Specifications: - Multi-function tetra-phase energy meter 230/400V 50/60Hz - Direct connection up to 80A per phase - Measures active and reactive energy, voltage, current, active and reactive power, power factor, frequency - Class 1 accuracy for energy, class 0.5 for instantaneous values - Wifi communication for remote control and monitoring via smartphone app - Integrated relay for contactor function (manual or programmable control) - DIN rail mounting, 7-module wide housing - Consumption history and index display (hourly, daily, monthly) - Alarm and protection functions with notifications - Remote circuit control via Wifi - Time scheduling and prepayment features - Data export in CSV format - CE and RoHS compliant - Standards: IEC62053-21, IEC62052-11
