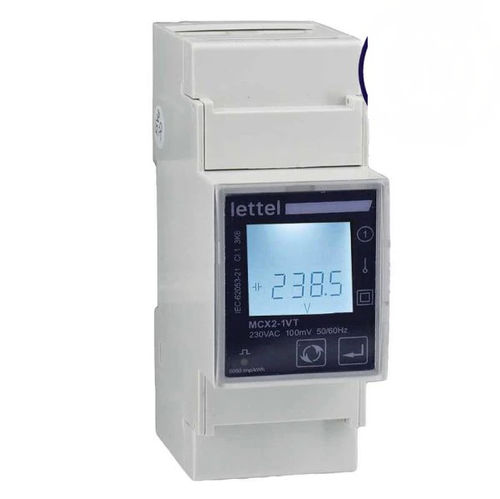

Single-phase electric energy meter MCX2-1100MT

DIN raildigitalmulti tariff

The MCX2-1100MT MID-certified single-phase meter combines performance with ease of integration and use: - Electrical: Multi-measurement energy meter for single-phase 230V 50/60Hz network. Direct connection, max current 100A. - Communication: The MID MCX2-1100MT energy meter is equipped with a programmable pulse emitter and RS485 Modbus port. - Measurement accuracy: Class 0.5 for active energy measurement (kWh), or class B according to MID directive. - Physical: Meter with 2-module wide housing (36mm), DIN rail mountable. Sealable terminal covers. Backlit LCD display (adjustable duration). - Measured data: The sub-meter measures a multitude of electrical quantities: – Active (kWh) and reactive (kVArh) energies imported, exported, and total. Dual tariff metering possible. – Instantaneous values: Voltage (V), current (U), active power (kW), reactive power (kVAr), apparent power (kVA), power factor (cos Phi), frequency (Hz). – Calculation of average and maximum demands. - Dual tariff metering: The meter allows energy to be counted on 2 separate indexes (T1 and T2). Energy increments on tariff 2 as soon as a 230V voltage is applied to the tariff input terminals. - Applications: The MCX2-1100MT single-phase electric meter is suitable for wind or photovoltaic applications thanks to separate indexes for imported (consumed) and exported (produced) energy. The MID certification allows this electric meter to be used for billing measured energy. - Integration simplicity: The meter, with a housing only 2 modules wide, can be integrated into any electrical cabinet or enclosure. - Use: Measurement visualization locally on the display or remotely via Modbus communication. - Safety: Sealable terminal covers to prevent any risk of electric shock or fraud. - Compliance: CE, RoHS, REACh. - Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC61557-12, IEC62053-22/-23, IEC60068-2-6, EN55011 - Multi-tariff: On request, version with 4 programmable tariffs via Modbus or Mbus communication. - Technical resources: MID certification, Essentials of the electric meter, RS485 MODBUS communication, Understanding the accuracy class of an electric meter, Electrical measurement units Technical characteristics / specifications: - Model: MCX2-1100MT - Type: MID-certified single-phase energy meter - Max current: 100A - Voltage: 230V 50/60Hz - Direct connection - Pulse output and RS485 Modbus communication - Measurement accuracy: Class 0.5 (active energy), Class B (MID) - 2-module (36mm) DIN rail housing - Backlit LCD display - Sealable terminal covers - CE, RoHS, REACh compliant - Standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC61557-12, IEC62053-22/-23, IEC60068-2-6, EN55011
