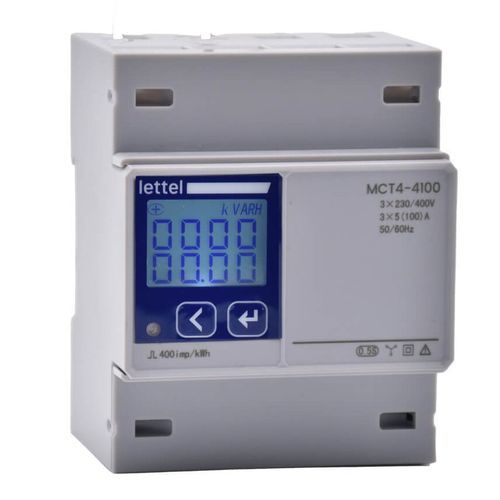

Three-phase electric energy meter MCT4-x100 series

DIN railModbus RTUwith data logger

The MCT4-x100 electric meter for three-phase or four-wire networks combines performance with minimal footprint: - **Electrical:** - Sub-meter for three-phase 3x 400V or four-wire 3x 230/400V 50/60Hz networks - Direct series connection - Current range from 0.04 to 100A per phase - Active energy measurement accuracy class 0.5S. - **Physical:** - DIN rail mounting - 4-module width housing (72 mm) - Sealable terminal covers - Front panel IP54. - **Communication:** - Pulse emitter on active energy (adjustable constant). - RS485 port with Modbus RTU or Mbus communication protocol, fully programmable (parity, speed, frame). - **Technical Papers:** - Essential of the electric meter - RS485 MODBUS communication - Understanding the precision class of an electric meter - Electrical measurement units - **Multi-measure:** - The MCT4-x100 three-phase sub-meter measures key electrical quantities for detailed circuit analysis: - Active and reactive energies, imported and exported, per phase and total - Voltage - Current - Active, reactive, and apparent powers - Power factor - Frequency - Demands* - Extreme values* - Harmonic distortion rates U and I*. - *Data accessible via Modbus. - **Integration:** - Compact 4-module width housing. - Direct series connection, top entry and bottom exit, with neutral on the left. - **Usage:** - Local measurement visualization on the scrolling display or remotely on the complete software provided for free. - **Applications:** - The MCT4-x100 three-phase energy meter is suitable for wind or photovoltaic applications thanks to distinct indexes for imported (consumed) and exported (produced) energy. - **Safety:** - Sealable terminal covers to prevent electric shock or fraud. - **Precision:** - Class 0.5S for active energy. - **Standards and Certifications:** - **Conformities:** CE, RoHS, REACh. - **Applicable Standards:** IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12. - **Variants and Order Codes:** - **Order Code** | **Network Type** | **Communication** | **Product Stocked** - MCT4-3100 | Three-phase without neutral | RS485 Modbus RTU | instock - MCT4-4100 | Four-wire | RS485 Modbus RTU | instock - MCT4-4100-MBUS | Four-wire | RS485 Mbus | instock - **Features / Technical Specifications:** - Sub-meter for three-phase 3x 400V or four-wire 3x 230/400V 50/60Hz networks - Direct series connection - Current range from 0.04 to 100A per phase - Active energy measurement accuracy class 0.5S - DIN rail mounting - 4-module width housing (72 mm) - Sealable terminal covers - Front panel IP54 - Pulse emitter on active energy (adjustable constant) - RS485 Modbus RTU or Mbus programmable port - Local or remote visualization - Conformities: CE, RoHS, REACh - Standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12
