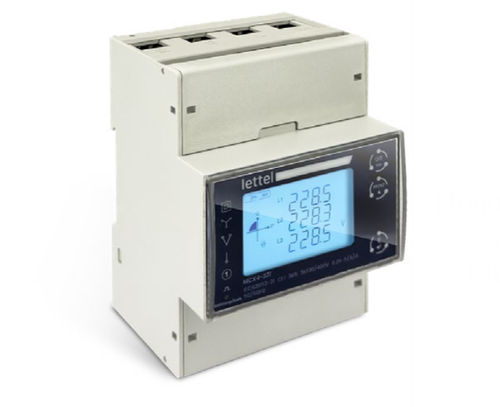

Three-phase electric energy meter MCX4-30X series

single-phaseDIN railMID certified

Description
Modbus and MID energy meter with direct connection.

Features

• Electrical: Energy meter for up to 3 networks (single-phase, three-phase or four-phase). Maximum current 100 A and direct connection.
• Communication: Modbus RS485. Pulse output. Clear interface and intuitive menu.
• Physical: DIN-rail mounting. Enclosure width 4 modules (72 mm). Front panel IP54.
• Multi-measure: Total active energy imported and exported. Total reactive energy imported and exported. Voltage. Current. Frequency. Active power, reactive power, apparent power. Power factor. Voltage and current harmonic distortions. Maximum and average demands.
• Accuracy classes: MID version 0,5S/C. Non-MID version 1/B.

Advantages

• Applications: Energy consumption monitoring for sites to reduce costs and optimise energy efficiency. Supervision of multi-network installations (single/three/four-phase) up to 100 A. Power quality management and control (measurement of harmonics, power factor). Integration into BMS/Smart Building systems via Modbus RS485. Regulatory verification and energy billing with the MID-certified version.
• Safety: Sealable (tamper-evident) terminal covers to reduce electric shock risks and limit fraud.

Standards and certifications

• Compliances: CE, RoHS, REACH.
• Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068.

Variants and ordering codes
Order code | Max current | Communication | Tariff count | MID approval | Stock status
MCX4-300-M | 100A | RS485 Modbus RTU | Single | Yes | In stock
MCX4-300 | 100A | RS485 Modbus RTU | Single | | In stock
MCX4-302-M | 100A | RS485 Modbus RTU | Dual | Yes | In stock
MCX4-302 | 100A | RS485 Modbus RTU | Dual | | Out of stock
MCX4-301-M | 100A | RS485 Modbus RTU | Quadruple | Yes | In stock
MCX4-301 | 100A | RS485 Modbus RTU | Quadruple | | Out of stock

Resources and documentation available

• MCX meter range (overview) — PDF.
• Complete manual (product manual) — PDF.
• Modbus RTU register map — PDF.

Technical specifications

• Direct connection up to 100 A.
• Measurements: active and reactive energy (import/export), voltages, currents, frequencies, powers, power factor, harmonics, demands.
• Interfaces: RS485 Modbus RTU, pulse output.
• Mounting: DIN rail. Enclosure width: 4 modules (72 mm). Front panel IP54.
• Versions: MID (0,5S/C) and non-MID (1/B).
• Sealable (tamper-evident) terminal covers.
• Compliance CE, RoHS, REACH; meets the IEC standards listed above.
