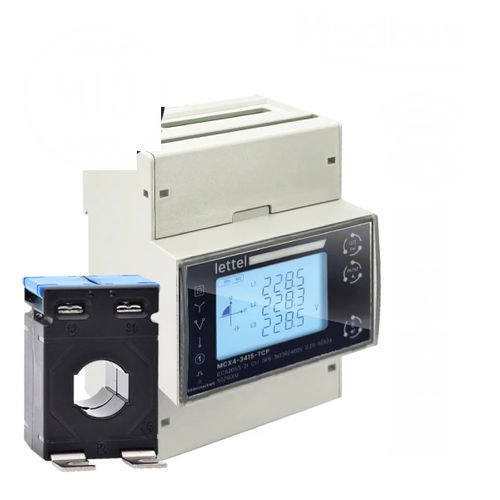

Overview The MCX4-30XCT is an energy meter with Modbus communication and TC connection. It is designed to measure electrical consumption on medium- and high-power installations requiring current transformer (CT/TC) connections. Available in MID-approved versions for legal energy billing and non-MID versions for internal monitoring. With RS485 Modbus RTU communication, it integrates into SCADA and energy management systems for load analysis, power quality monitoring and electrical performance optimization.

Electrical characteristics

• Measures up to 3 networks: single-phase, three-phase or four-phase
• Connection via current transformers (CT/TC)

Communication

• RS485 Modbus RTU
• Pulse output
• Clear display and intuitive menu

Physical

• DIN-rail mounting
• Enclosure width: 4 modules (72 mm)
• Front protection: IP54

Functions

• Total active energy imported and exported
• Total reactive energy imported and exported
• Voltage
• Current
• Frequency
• Active, reactive and apparent power
• Power factor
• Voltage and current harmonic distortion
• Maximum and average demands

Accuracy classes

• MID version: 0.5S/C
• Non-MID version: 1/B

Standards and certifications

• Compliances: CE, RoHS, REACH
• Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068

Variants and order codes Order code — Max current — Communication — Number of tariffs — MID approval — Stock status
MCX4-300CT-M — CT /1A or /5A — RS485 Modbus RTU — Single — Yes — instock
MCX4-300CT — CT /1A or /5A — RS485 Modbus RTU — Single — (non MID) — instock
MCX4-302CT-M — CT /1A or /5A — RS485 Modbus RTU — Double — Yes — instock
MCX4-302CT — CT /1A or /5A — RS485 Modbus RTU — Double — (non MID) — outofstock
MCX4-301CT-M — CT /1A or /5A — RS485 Modbus RTU — Quadruple — Yes — instock
MCX4-301CT — CT /1A or /5A — RS485 Modbus RTU — Quadruple — (non MID) — outofstock

Technical characteristics / specifications

• Model: MCX4-30XCT
• Connection type: Current transformers (CT/TC) — versions /1A or /5A
• Number of measured networks: up to 3 networks (single-phase, three-phase or four-phase)
• Communication: RS485 Modbus RTU
• Outputs: pulse output
• Mounting: DIN-rail
• Enclosure width: 4 modules (72 mm)
• Front protection: IP54
• Measurement functions: active/reactive energy (import/export), voltage, current, frequency, powers, power factor, harmonics, demands
• Available accuracy classes: MID 0.5S/C or non-MID 1/B
• Compliances: CE, RoHS, REACH; applicable IEC standards
