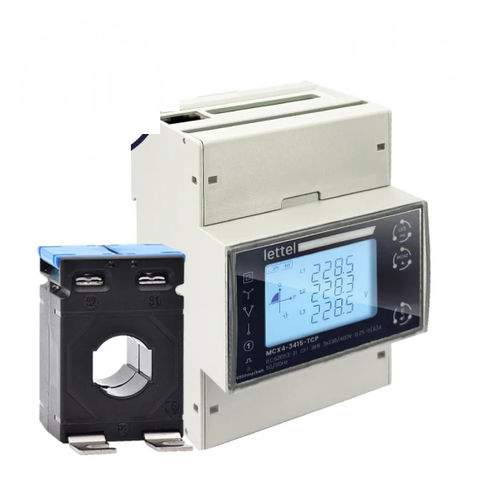

Three-phase electric energy meter MCX4-31XCT series

single-phaseDIN railwith current transformer

Overview
MCX4-31XCT is a MID-certified energy meter with M‑Bus-compatible communication and Modbus RS485 interface, designed for connection via current transformers (CT). Suitable for measurement on single-phase (up to 3), three-phase or four-phase networks, with pulse output and centralized telemetering capability.

Features

• Electrical:
  • Energy meter for up to 3 single-phase networks, three-phase or four-phase systems
  • Connection via current transformers (CT) / 1A or /5A
• Communication:
  • Modbus RS485
  • Pulse output
  • Clear interface and intuitive menu
• Physical:
  • DIN-rail mounting
  • Housing width 4 modules (72 mm)
  • Front panel protection rating IP54

Benefits and applications
The MCX4-31XCT combines M‑Bus-compatible communication and CT connection to provide a MID-certified metering solution for commercial, industrial and multi-site installations that require consumption allocation and centralized remote reading. It is suitable for integration into energy management and multi-energy systems, load analysis and electrical performance optimization.

Safety

• Sealable terminal covers to reduce electric shock risk and prevent tampering

Functionalities

• Multi-measurement:
  • Total active energy import/export
  • Total reactive energy import/export
  • Voltage
  • Current
  • Frequency
  • Active power
  • Reactive power
  • Apparent power
  • Power factor
  • Voltage and current harmonic distortion
  • Maximum and average demand
• Accuracy classes:
  • MID version 0.5S/C
  • Non-MID version 1/B

Standards and certifications

• Compliances: CE, RoHS, REACH
• Applicable standards: IEC 61000-4-2/3/4/5/6/8/11, IEC 61010-1, IEC 62052-23, IEC 62053-22, IEC 61557-12, IEC 60068

Variants and order codes
Order code | Max current | Communication | Tariff count | MID approval | Stock status
MCX4-310CT-M | CT /1A or /5A | RS485 M‑Bus | Single | Yes | instock
MCX4-310CT | CT /1A or /5A | RS485 M‑Bus | Single | (n/a) | outofstock
MCX4-312CT-M | CT /1A or /5A | RS485 M‑Bus | Double | Yes | outofstock
MCX4-312CT | CT /1A or /5A | RS485 M‑Bus | Double | (n/a) | outofstock
MCX4-311CT-M | CT /1A or /5A | RS485 M‑Bus | Quadruple | Yes | outofstock
MCX4-311CT | CT /1A or /5A | RS485 M‑Bus | Quadruple | (n/a) | outofstock

Resources (supporting documents)

• Energy meter essentials
• Understanding energy meter accuracy classes
• Electrical units of measurement

Technical specifications

• Communication: Modbus RS485 (M‑Bus compatible depending on variant)
• Connection: via current transformers (CT) /1A or /5A
• Measurements: active/reactive energy import and export, voltage, current, frequency, powers, power factor, harmonics
• Mounting: DIN rail
• Enclosure: width 4 modules (72 mm)
• Front panel protection rating: IP54
• Variant options: single / double / quadruple circuits (depending on reference)
• Compliances: CE, RoHS, REACH; IEC standards listed above
