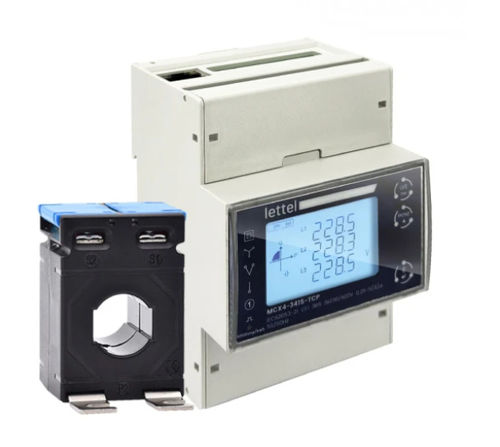

Three-phase electric energy meter MCX4-30XCT-400V series

DIN railpulse outputwith built-in communication

Summary
Three-phase 400V Modbus energy meter for connection via current transformers (CT). Suitable for monitoring and energy management of high-power installations.

Features

• Electrical:
  • Three-phase 400V network
  • Connection via current transformer (CT)
  • Single, dual and four-tariff options
  • Powered from three-phase 400V supply
• Communication:
  • Modbus RTU (RS485)
  • Pulse output
  • Clear interface and intuitive menu
• Physical:
  • DIN-rail mounting
  • Enclosure width: 4 modules (72 mm)

Benefits / Applications

• Monitoring of main low-voltage switchboards, workshops, production lines and distribution panels.
• Centralized energy supervision: facilitates consumption analysis, drift detection and optimization of electrical performance.
• Suitable for multi-tenant buildings, shopping centers, warehouses and technical facilities requiring accurate energy tracking.

Functions

• Multi-parameter measurements: total active energy (import/export), total reactive energy (import/export)
• Voltage, current and frequency measurements
• Active, reactive and apparent power measurements
• Power factor
• Voltage and current harmonic distortion
• Maximum and average demand
• Declared accuracy class: 1/B

Standards & Safety

• Sealable terminal covers to prevent electrical risks and tampering
• Compliance: CE, RoHS, REACH
• Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068

Variants and order codes
Order code | Max current | Tariff options | Stock status
MCX4-300CT-400V | CT /1A or /5A | Single | in stock
MCX4-302CT-400V | CT /1A or /5A | Dual | out of stock
MCX4-301CT-400V | CT /1A or /5A | Four | out of stock

Available documents

• MCX meter range (overview)
• Full product manual
• Modbus RTU register map

Technical specifications

• Product type: three-phase energy meter for connection via current transformers (CT)
• Supply: three-phase 400V
• CT inputs: compatible with 1A or 5A secondary depending on variant
• Communication: Modbus RTU (RS485), pulse output
• Format: DIN-rail mounting, width 4 modules (72 mm)
• Accuracy class: 1/B
• Measured functions: active/reactive energy (import/export), voltages, currents, frequency, powers, power factor, harmonics, demands
• Safety: sealable terminal covers
• Compliance: CE, RoHS, REACH
• Standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068
