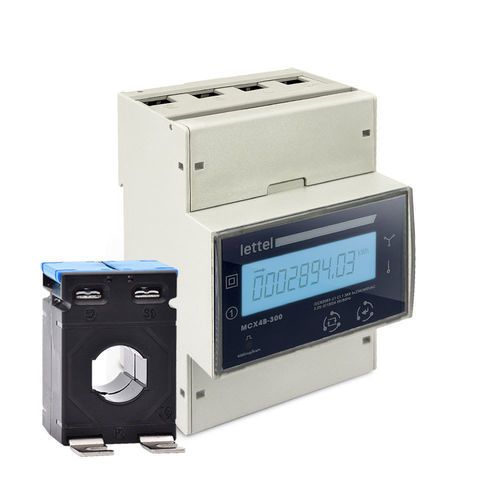

Three-phase electric energy meter MCX4B-30XCT

single-phaseDIN railpulse output

Overview
Pulse meter via current transformer (CT) designed for tetrapolar/four-wire networks. Intended for energy monitoring and metering in medium- and high-power installations, it measures active energy, voltage, current, power, frequency and power factor. Its pulse output makes it compatible with SCADA systems and centralized data loggers.

Main features

• Electrical:
  • Single-phase (x3) and tetrapolar/four-wire networks
  • Connection via current transformer (CT)
  • Single-tariff
• Communication:
  • Pulse output
  • Clear interface and intuitive menu
• Physical:
  • DIN-rail mounting
  • Enclosure width: 4 modules (72 mm)
• Multi-measure:
  • Total imported and exported active energy
  • Voltage
  • Current
  • Frequency
  • Active power
  • Power factor
• Accuracy class:
  • 1/B

Applications
Energy monitoring and tracking for tertiary buildings, light industrial sites or multi-tenant installations. Suitable for integration into centralized consumption monitoring or recording systems for load analysis, circuit performance checks and consumption optimization.

Advantages and safety

• Pulse output format, easy to integrate into supervision systems or data loggers
• Sealable terminal covers to reduce electric shock risk and deter tampering

Compliance and standards

• Certifications: CE, RoHS, REACh
• Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068

Resources and available documentation

• MCX meter range (product brochure)
• Complete product manual (MCX4B specific manual)
• Technical articles: Fundamentals of the electricity meter; Understanding meter accuracy class; Electrical measurement units

Technical specifications

• Type: Pulse meter via current transformer (CT)
• Supported networks: single-phase (x3), three-phase, tetrapolar/four-wire
• Connection: via current transformer
• Tariff: single-tariff
• Communication output: pulse output
• Display / Interface: intuitive menu, clear interface
• Mounting: DIN-rail
• Enclosure width: 4 modules (72 mm)
• Measurements: imported/exported active energy, voltage, current, frequency, active power, power factor
• Accuracy class: 1/B
• Safety: sealable terminal covers
• Certifications: CE, RoHS, REACh
• Standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068
