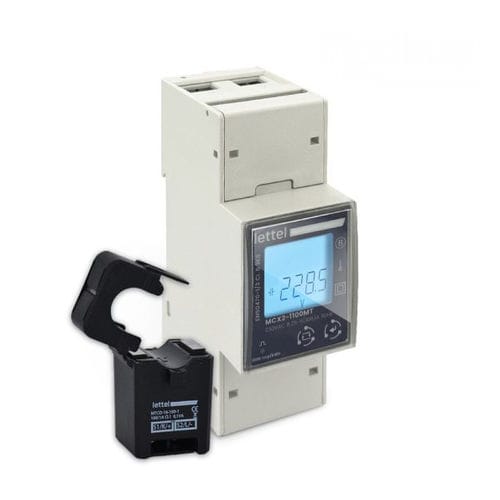

Single-phase electric energy meter MCX2-10XCT series

DIN railRS-485with current transformer

Overview
Single-phase energy meter with supplied split-core current transformer (∅16) for indirect measurement up to 100 A. Available in single, double or four tariff options. Compact DIN-rail enclosure, clear display and intuitive menu.

Electrical characteristics

• Energy meter for single-phase networks with Modbus communication
• Measurement via supplied split-core current transformer ∅16 (measurement range 40 mA to 100 A)

Communication

• Modbus communication (RS485)
• Transmission of electrical parameters and consumption data via Modbus to supervision systems, BMS
• Available in single, double or four tariff options
• Clear interface and intuitive menu

Physical

• DIN-rail mounting
• Compact enclosure, width 2 modules (36 mm)
• Sealable terminal covers to prevent electrical risks and fraud

Multi-parameter measurements

• Total active energy import and export
• Reactive energy import and export
• Voltage
• Current
• Frequency
• Active, reactive and apparent power
• Power factor
• Maximum and average demands

Accuracy classes

• 1/B

Applications and usage
The MCX2-10XCT is designed for measurement and supervision of single-phase installations up to 100 A in tertiary and industrial environments. Indirect measurement using a split-core CT allows installation without interrupting the existing line, suitable for renovation or extension projects. Ideal for sub-billing, consumption monitoring by line or equipment, energy management and cost allocation. Integrable into BMS architectures for consumption analysis and optimization.

Standards and compliance

• Compliances: CE, RoHS, REACh
• Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068

Resources (documents available)
Datasheets, user manuals and Modbus RTU register map available as PDF in the product download area.

Variants / Order codes (table)
Order code | Network type | Max current | Tariff count | Stock status
MCX2-100CT | Single-phase | 100 A | Single | out of stock
MCX2-102CT | Single-phase | 100 A | Double | in stock
MCX2-101CT | Single-phase | 100 A | Four | out of stock

Technical characteristics / specifications

• Indirect measurement via supplied split-core current transformer ∅16
• Current measurement range: 40 mA to 100 A
• Communication interface: Modbus RTU (RS485)
• Tariff options: single, double or four tariffs depending on variant
• Enclosure width: 2 modules (36 mm) for DIN-rail mounting
• Measured functions: active/reactive energy import/export, voltage, current, frequency, powers (active, reactive, apparent), power factor, max and average demands
• Accuracy class: 1/B
• Sealable terminal covers (anti-fraud safety)
• Compliances and standards: CE, RoHS, REACh; IEC61000-4-x, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068
