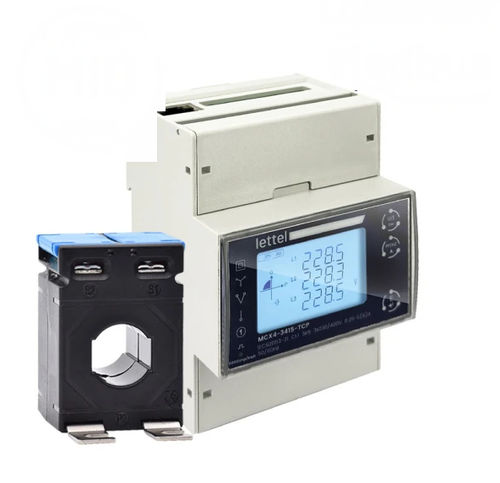

Three-phase electric energy meter MCX4-34XCT series

DIN railsmartmulti tariff

Description
Energy meter for three‑phase or four‑phase networks, connected via current transformers (CT), with LoRaWAN and Modbus RS485 communications. Available in single‑, two‑ or four‑tariff versions, with or without MID approval.

Features

• Electrical: Energy meter for three‑ or four‑phase networks; connection via CT (1A/5A).
• Communication: LoRaWAN; Modbus RS485; pulse outputs; single, two or four tariff options; clear interface and intuitive menu.
• Physical: DIN‑rail mounting; enclosure width 4 modules (72 mm).

Benefits

• Available versions: single, two or four tariffs; MID‑approved or non‑approved variants.
• Applications: suitable for commercial, industrial and smart‑grid environments; MID certified for energy billing (on approved versions).
• Operation: long‑range remote reading via LoRaWAN to reduce on‑site interventions and simplify consumption monitoring.

Functions

• Multi‑measurement: total active energy (export/import).
• Total reactive energy (export/import).
• Voltage, current, frequency.
• Active, reactive and apparent power.
• Power factor.
• Harmonic distortions (voltage and current).
• Maximum and average demands.

Standards and certifications

• Safety: sealable terminal covers to prevent electrical shock or fraud.
• Conformities: CE, RoHS, REACh.
• Applicable standards: IEC 61000-4-2/3/4/5/6/8/11, IEC 61010-1, IEC 62052-23, IEC 62053-22, IEC 61557-12, IEC 60068.

Variants and ordering codes
Order code | Tariff count | MID approval | Stock status
MCX4-340CT | Single | (not specified) | out of stock
MCX4-340CT-M | Single | Yes | in stock
MCX4-342CT | Two | (not specified) | out of stock
MCX4-342CT-M | Two | Yes | out of stock
MCX4-341CT | Four | (not specified) | out of stock
MCX4-341CT-M | Four | Yes | out of stock

Available documents (titles)

• MCX meter range (presentation)
• Complete manual (MCX4-34xCT)
• Modbus RTU register table

Characteristics / technical specifications

• Model: MCX4-34XCT
• Compatible network: three‑phase/four‑phase
• Connection: via current transformers (CT) 1A/5A
• Communications: LoRaWAN, Modbus RS485
• Tariffs: single, two, four
• Display: clear interface, intuitive menu
• Mounting: DIN‑rail
• Enclosure: width 4 modules (72 mm)
• Safety: sealable terminal covers
• Conformities: CE, RoHS, REACh; IEC standards listed above
