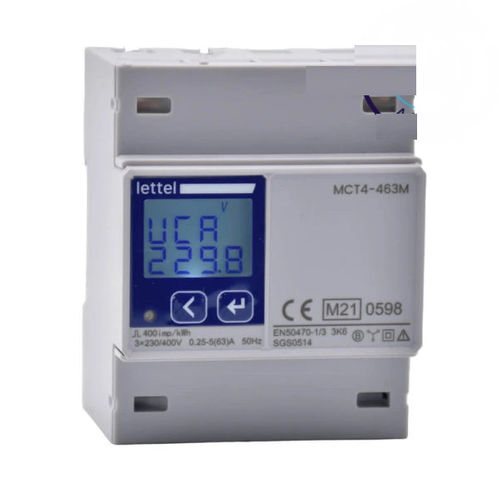

Three-phase electric energy meter MCT4-463M

DIN railModbuspulse output

The multifunctional electric meter MCT4-463M combines performance with minimal footprint: - **Electrical Characteristics:** Three-phase meter with neutral 3x 230/400V 50/60Hz Direct series connection Current range from 0.02 to 63A per phase Active energy measurement accuracy class 0.5S, or B according to MID. - **Physical Characteristics:** DIN rail mounting 4-module width housing, 72 mm Sealable terminal covers Front panel IP54. - **Communication:** Pulse emitter on active energy (adjustable constant). Fully programmable Modbus port (parity, speed, frame). - **Multi-measurement Features:** The MCT4-463M energy meter measures key electrical quantities for detailed circuit analysis: – active and reactive energies, imported and exported – voltage – current – active, reactive, and apparent powers – power factor – frequency – demands – extreme values – harmonic distortion rates U and I. - **Advantages:** Compact 4-module width housing. Direct series connection, top entry and bottom exit, with neutral on the left. Measurement visualization locally on the display or remotely on the comprehensive software provided for free. Suitable for wind or photovoltaic applications thanks to distinct indexes for imported (consumed) and exported (produced) energy. Possibility to rebill energy thanks to MID certification. Sealable terminal covers to prevent electric shock or fraud. Class 0.5S for active energy. - **Standards and Certifications:** CERTIFICATIONS: MID annex II, modules B and D. COMPLIANCES: CE, RoHS, REACh. APPLICABLE STANDARDS: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, EN50470-3. - **Available Variants:** On request, version with 4 programmable tariffs via Modbus communication.
