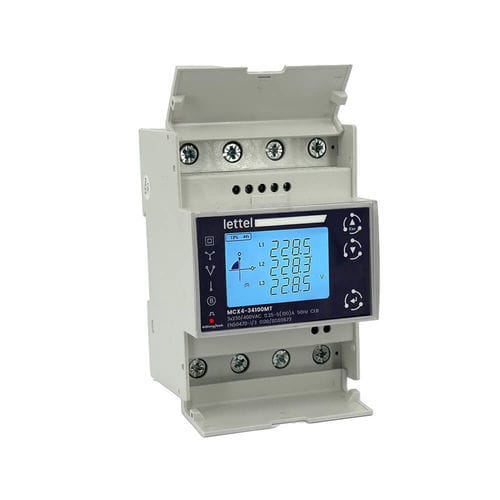

Three-phase electric energy meter MCX4-34100MT

DIN raildigitalmulti tariff

The MCX4 three-phase meter offers the most advanced features and enables energy billing: - Electrical: The MCX4-34100MT multifunction meter measures a single-phase, three-phase circuit with or without neutral. Auxiliary power supply 230V AC. Direct connection up to 100A. Accuracy 0.5% for active energy and instantaneous measurements. - Communication: The MID MCX4-34100MT energy meter is equipped with a programmable pulse emitter and RS485 Modbus port. - Measurement accuracy: Class 0.5 for active energy measurement (kWh), or class B according to MID directive. - Physical: Meter with 4-module width housing (72mm), DIN-rail mountable. Sealable terminal covers. Backlit LCD display (adjustable duration). - Measured data: The multifunction meter measures and displays the following electrical data: – Instantaneous measurements: single and compound voltages, frequency, current per phase and total, PQS power, power factor per phase and total. – Energies: active, reactive, apparent, imported and exported, per phase and total, in dual-tariff. – Network quality: voltage and current harmonic distortion rates. – Recordings: demands, extreme values. - Dual tariff metering: Energy metering on 2 separate indexes (T1 and T2). Energy increments on tariff 2 as soon as a 230V voltage is applied to the tariff input terminals. - Applications: The MCX4-34100MT three-phase electric meter is suitable for wind or photovoltaic applications thanks to separate indexes for imported (consumed) and exported (produced) energy. The MID certification allows this electric meter to be used for billing measured energy. - Usage: Viewing measurements locally on a large 3-line LCD screen, or remotely via Modbus RTU communication. - Ease of integration: The meter, with a housing only 4 modules wide, can be integrated into any cabinet or electrical panel. - Safety: Sealable terminal covers to prevent any risk of electric shock or fraud. - Compliance: CE, RoHS, REACh. - Applicable standards: IEC61000, IEC61010, IEC62052, IEC62053. - MBus communication: On request. - Technical resources: – MID certification – The essentials of the electric meter – RS485 MODBUS communication – Understanding the accuracy class of an electric meter – Electrical measurement units - Articles: – New in the Enerpro range - Technical characteristics / specifications: Model: MCX4-34100MT Type: Three-phase or tetra-phase electric meter Direct connection: up to 100A Accuracy: 0.5% for active energy and instantaneous measurements Auxiliary power supply: 230V AC Communication: RS485 Modbus, programmable pulse output Dual tariff metering (T1/T2) Backlit LCD display DIN-rail mounting, 4 modules (72mm) Sealable terminal covers Compliance: MID, CE, RoHS, REACh Applicable standards: IEC61000, IEC61010, IEC62052, IEC62053 Optional: MBus communication (on request)
