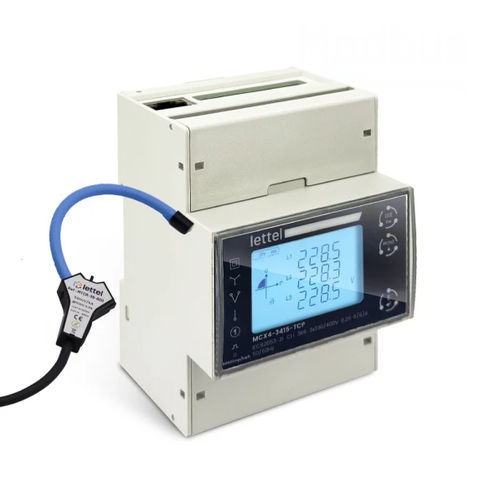

Three-phase electric energy meter MCX4-30XCT-RC series

single-phaseDIN railpulse output

Description
Modbus energy meter with Rogowski coil connection.

Main features

• Electrical:
  • Energy meter for up to 3 networks: single-phase, three-phase or four-wire
  • Connection with Rogowski coil
• Communication:
  • Modbus RS485
  • Pulse output
  • Clear interface and intuitive menu
• Physical:
  • DIN-rail mounting
  • Enclosure width: 4 modules (72 mm)
• Multi-measure:
  • Total active energy imported and exported
  • Total reactive energy imported and exported
  • Voltage
  • Current
  • Frequency
  • Active, reactive and apparent power
  • Power factor
  • Voltage and current harmonic distortion
  • Maximum and average demands
• Accuracy classes: 1 / B

Advantages

• Applications: Energy monitoring of high-power installations and/or installations with mounting constraints (existing switchboards, busbars, large-section cables, confined environments). Suitable for industrial sites, workshops, data centers, commercial buildings and multi-outfeed installations. Facilitates energy supervision, consumption analysis and optimization of electrical performance.
• Note: Rogowski coils to be ordered separately.
• Safety: Sealable terminal covers to reduce electrical risks or tampering.

Variants and order codes
Order code | Max current | Number of tariffs | Stock status
MCX4-300CT-RC | Rogowski CT MTCR | Single | In stock
MCX4-302CT-RC | Rogowski CT MTCR | Double | Out of stock
MCX4-301CT-RC | Rogowski CT MTCR | Quadruple | Out of stock

Standards and certifications
Conformities: CE, RoHS, REACh
Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068

Characteristics / Technical specifications

• Recommended sensor type: Rogowski coil (to be ordered separately)
• Communication: Modbus RTU (RS485), pulse output
• Mounting: DIN-rail
• Enclosure width: 4 modules (72 mm)
• Measurements: active/reactive energy (import/export), voltages, currents, frequencies, powers, power factor, harmonics, demands
• Accuracy class: 1 / B
• Multi-network options: supports 3 networks (single/three/four-wire)
