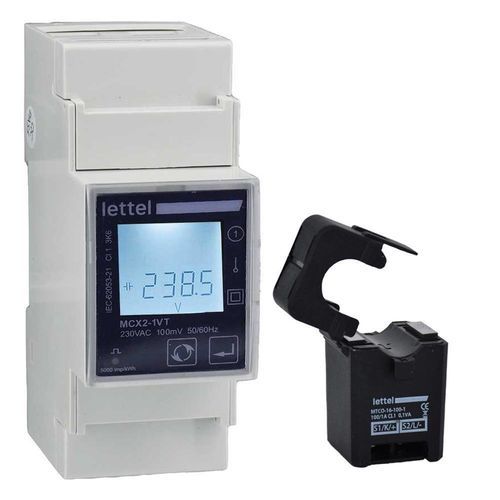

Single-phase electric energy meter MCX2-1VT

DIN railclamp-onpulse output

The single-phase meter MCX2-1VT combines performance with ease of integration and use: - **Electrical:** Multi-measure energy meter for single-phase network 230V 50/60Hz. Measurement by split-core current transformer, current range from 40mA to 100A. - **Measured Data:** The submeter measures a multitude of electrical quantities: - Active (kWh) and reactive (kVArh) energies imported, exported, and total. Dual tariff metering possible. - Instantaneous values: Voltage (V), current (U), active power (kW), reactive power (kVAr), apparent power (kVA), power factor (cos Phi), frequency (Hz). - Calculation of average and maximum demands. - **Measurement Accuracy:** Class 0.5S for active energy (kWh) measurement. - **Communication:** The MCX2-1VT energy meter is equipped with programmable pulse emitter and RS485 Modbus port. - **Physical:** Meter with 2-module width housing (36mm), DIN rail mountable. Sealable terminal covers. Backlit LCD display (adjustable duration). Split-core current transformer, Ø16mm opening, 115 cm wire length. - **Dual Tariff Metering:** The meter allows energy metering on 2 distinct indexes (T1 and T2). Energy increments on tariff 2 when a 230V voltage is applied to the tariff input terminals. - **Electricity Production Application:** The single-phase electric meter MCX2-1VT is suitable for wind or photovoltaic applications thanks to distinct indexes for imported (consumed) and exported (produced) energy. - **Ease of Integration:** The meter, with a housing only 2 modules wide, can be integrated into any electrical cabinet or enclosure. The split-core current transformer can be connected without disconnecting the circuit to be measured. - **Usage:** View measurements locally on the display or remotely via Modbus communication. - **Safety:** Sealable terminal covers to prevent any risk of electric shock or tampering. - **Precision:** Class 0.5S for active energy. - **Compliance:** CE, RoHS, REACh. - **Applicable Standards:** IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC61557-12, IEC62053-22/-23, IEC60068-2-6, EN55011 - **Multi-tariff:** On request, version with 4 programmable tariffs via Modbus or Mbus communication. **Features / Technical Specifications:** - Model: MCX2-1VT - Type: Single-phase energy meter - Measurement: By split-core CT 100A (range 40mA to 100A) - Communication: RS485 Modbus, pulse emitter - Display: Backlit LCD - Housing: 2 modules (36mm), DIN rail mount - Precision: Class 0.5S (active energy) - Compliance: CE, RoHS, REACh - Standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC61557-12, IEC62053-22/-23, IEC60068-2-6, EN55011 - Dual tariff, import/export index - Split-core current transformer Ø16mm, 115cm wires
