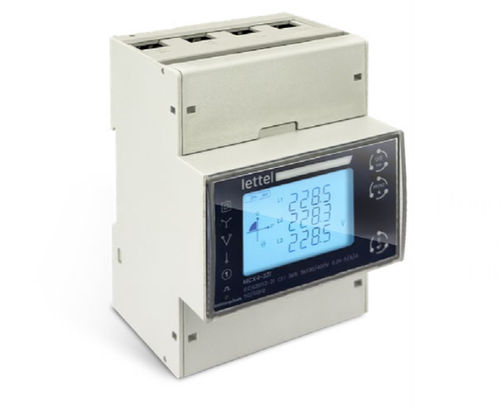

Three-phase electric energy meter MCX4-34X series

DIN railModbus RTUwith built-in communication

Overview
Energy meter for three-phase or four-phase networks, direct connection, maximum current 100 A. Long-range LoRaWAN communication and Modbus RS485 interface. Available in single-, dual- or four-tariff versions. Clear display with an intuitive menu, suitable for remote reading and energy supervision.

Main features

• Networks: three-phase or four-phase
• Connection: direct connection
• Maximum rated current: 100 A
• Tariffs: single, dual or four-tariff versions available
• Display: clear interface and intuitive menu
• Mounting: DIN rail
• Enclosure width: 4 modules (72 mm)

Communication

• LoRaWAN
• Modbus RTU (RS485)
• Pulse output

Measurement functions

• Total active energy (export and import)
• Total reactive energy (export and import)
• Voltage
• Current
• Frequency
• Active, reactive and apparent power
• Power factor
• Voltage and current harmonic distortions
• Maximum and average demands

Safety and compliance

• Sealable terminal covers for electrical shock prevention and anti-tamper
• Compliances: CE, RoHS, REACh
• Applicable standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068

Benefits & applications

• Single/dual/four-tariff options for flexible billing
• Long-range transmission and low consumption via LoRaWAN — ideal for remote reading and industrial/tertiary IoT networks
• Enables remote consumption monitoring, site energy management and reduction of manual readings
• Suitable for commercial buildings, industrial applications and smart-grid setups

Resources (related product documents)

• MCX meter range (product brochure)
• MCX4-340 full manual (product manual)
• Modbus RTU exchange table (Modbus map)

Technical specifications

• Model: MCX4-34X
• Product type: communicant 3-/4-phase energy meter
• Maximum current: 100 A (direct connection)
• Tariffs: single / dual / four (depending on variant)
• Communication interfaces: LoRaWAN, Modbus RS485, pulse output
• Measurements: active/reactive energy (import/export), voltage, current, frequency, powers (active, reactive, apparent), power factor, harmonic distortions, max/average demands
• Mounting: DIN rail
• Enclosure width: 4 modules (72 mm)
• Safety: sealable terminal covers
• Compliance: CE, RoHS, REACh
• Standards: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, IEC60068
• Commercial variants (example codes): MCX4-340 (single), MCX4-342 (dual), MCX4-341 (four-tariff)
