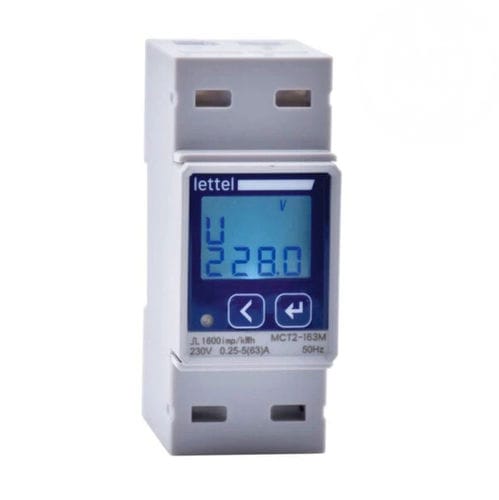

Single-phase electric energy meter MCT2-163M

DIN railpulse outputModbus RTU

The MCT2-163M meter combines performance with minimal footprint: - **Electrical Characteristics:** Single-phase meter 230V 50/60Hz Direct series connection Current range from 0.02 to 63A Active energy measurement accuracy class 0.5S, or B according to MID. - **Physical Characteristics:** DIN rail mounting 2-module width housing, 36 mm Sealable terminal covers Front panel IP54. - **Communication:** Pulse emitter on active energy (adjustable constant). Fully programmable Modbus port (parity, speed, frame). - **Multi-measurement Features:** The MCT2-163M energy meter measures key electrical quantities for detailed circuit analysis: - active and reactive energies, imported and exported - voltage - current - active, reactive, and apparent powers - power factor - frequency - demands - extreme values. - **Advantages:** Compact 2-module width housing. Direct series connection, top entry and bottom exit, with neutral on the left. Local measurement display on the screen or remotely on complete software provided for free. Suitable for wind or photovoltaic applications thanks to distinct indexes for imported (consumed) and exported (produced) energy. Possibility to rebill energy thanks to MID certification. Sealable terminal covers to prevent electric shock or fraud. Class 0.5S for active energy. - **Standards and Certifications:** CERTIFICATIONS: MID annex II, modules B and D. COMPLIANCES: CE, RoHS, REACh. APPLICABLE STANDARDS: IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, EN50470-3. - **Available Variants:** On request, the MCT2-163M energy meter can be made with 4 programmable tariffs via Modbus communication. - **Resources:** - MID Certification - Essential of the electric meter - RS485 MODBUS communication - Understanding the precision class of an electric meter - Electrical measurement units - **Characteristics / Technical Specifications:** - Model: MCT2-163M - Brand: Lettel - Type: Single-phase electric meter - Nominal current: 63A - Communication: Modbus RS485, pulses - Certification: MID - Precision class: 0.5S - Mounting: DIN rail, 2 modules (36 mm) - Protection index: IP54 (front panel) - Current range: 0.02 to 63A - Standards: CE, RoHS, REACh, IEC61000-4-2/3/4/5/6/8/11, IEC61010-1, IEC62052-23, IEC62053-22, IEC61557-12, EN50470-3
