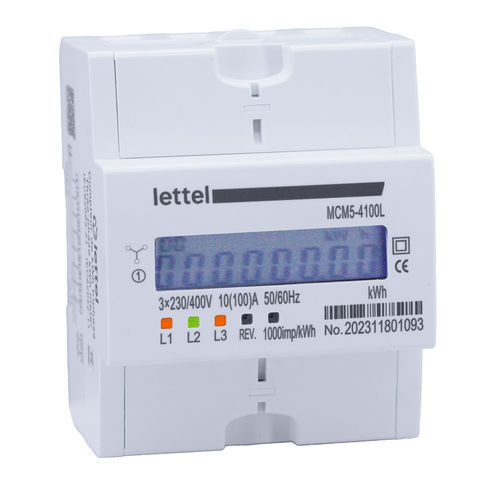

Three-phase electric energy meter MCM5-4100L

DIN railpulse outputdigital

The MCM5-4100L meter combines simplicity with robustness. It is suitable for sub-metering applications: - Electrical: - kWh totalizing meter for 3-phase 4-wire network 3x 230/400V 50/60Hz - Direct series connection - Current range from 0.04 to 100A per phase - Active energy measurement accuracy class 1. - Physical: - DIN-rail mounting - Case width 4.5 modules (76 mm) - Seal-able terminal covers. - Communication: - The energy meter emits 1000 pulses per kWh. The pulses emitted by the electric meters are used to report information to a computer or PLC. Their connection is optional. - Indicator lights: - LEDs on the front of the electric meter indicate: - voltage presence on each phase L1 L2 L3 - current direction reversal - metrological LED flashes proportionally to the measured load at a frequency of 1000 flashes per kWh. - Integration: direct series connection. - Safety: seal-able terminal covers to prevent any risk of electric shock or fraud. - Compliance: CE, RoHS. - Applicable standards: IEC62053-21, IEC62052-11. - Technical resources: - The essentials of the electric meter - Understanding the accuracy class of an electric meter - Electrical measurement units - Technical features / specifications: - Model: MCM5-4100L - Type: Three-phase electric meter - Maximum current: 100A per phase - Direct connection - DIN-rail mounting - Width: 4.5 modules (76 mm) - Seal-able terminal covers - Pulse output: 1000 pulses/kWh - Accuracy class: 1 - Standards: IEC62053-21, IEC62052-11 - Certifications: CE, RoHS
