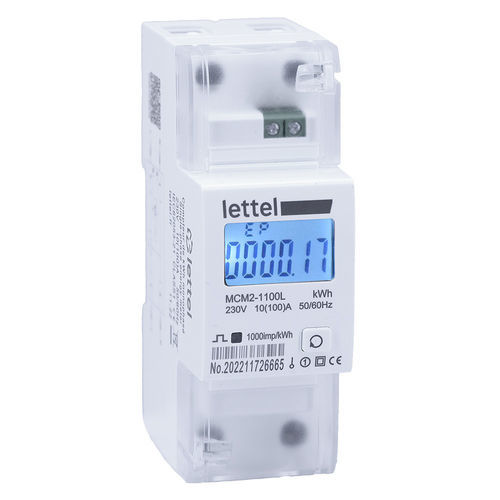

Single-phase electric energy meter MCM2-1100L

DIN rail

The MCM2-1100L sub-meter combines simplicity with robustness. It is suitable for sub-metering applications: - **Electrical:** Meter for single-phase network 230V 50/60Hz Direct series connection Current range from 0.04 to 100A Active energy measurement accuracy class 1. - **Measured Units:** This electric meter offers distinct indexes: - Total kWh - Imported kWh (consumed) - Exported kWh (produced) - Partial kWh with reset. A short press on the front button allows changing the index, and a long press resets the partial index. - **Physical:** DIN rail mounting 2-module width housing, 36 mm Sealable terminal covers. - **Communication:** The energy meter emits 1000 pulses per kWh. The pulses emitted by the electric meters are used to report information to a computer or an automaton. Their connection is optional. - **Metrological LED:** Blinking proportional to the measured load at a frequency of 1000 blinks per kWh. - **Partial Meter:** A totalizer index and a partial index with reset by pressing the front button. - **Integration:** Direct series connection. Compact 2-module width housing. - **Safety:** The meter is equipped with sealable terminal covers to prevent any risk of electric shock or fraud. - **Conformities:** CE, RoHS. - **Applicable Standards:** IEC62053-21, IEC61326-1 & -2-2, IEC61000-3-2 & -3-3 - **Resources:** - Essential of the electric meter - Understanding the accuracy class of an electric meter - Electrical measurement units **Characteristics / Technical Specifications:** - Model: MCM2-1100L - Type: Single-phase electric meter - Maximum current: 100A - Network: 230V 50/60Hz - Accuracy: Class 1 - Mounting: DIN rail - Housing width: 2 modules (36 mm) - Pulses: 1000/kWh - Compliance: CE, RoHS - Standards: IEC62053-21, IEC61326-1 & -2-2, IEC61000-3-2 & -3-3
