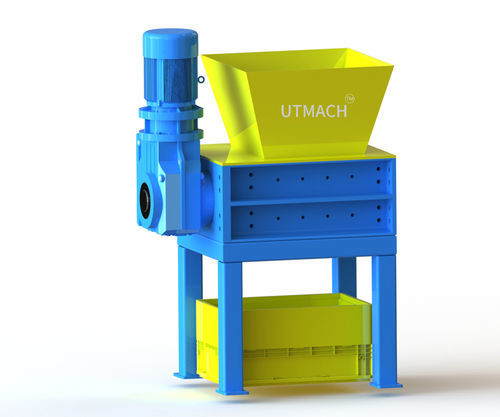

Double shaft shredder DS series

for medical wastepaperfor electronics scrap

Product overview
The compact single-motor double-shaft shredder is engineered for operations with limited floor space and moderate throughput requirements. The vertical motor layout reduces installation footprint while maintaining reliable cutting performance. The cutting system uses high-strength, wear-resistant alloy blades that can be configured for specific materials and target output sizes. An optional collection bin with swivel casters simplifies material handling and mobility.
Features & Advantages

• Vertical motor layout to minimize installation footprint
• High-torque, low-speed drive for stable cutting and enhanced safety
• Low noise and energy-efficient operation
• Wear-resistant alloy blades, configurable for material type and desired output
• Compact construction for easy maintenance and access

Optional collection bin with swivel casters for on-site mobility
Application range

• Plastics
• Rubber
• Packaging materials
• Paper and cardboard
• Textiles
• Foam
• Thin wood sheets
• Light e-waste
• Household waste

Medical or hospital waste (for controlled treatment)
Speficiation:
Item DS1230 DS1524 DS1640 DS1650 DS2012 DS2036 DS2040
Cutting Chamber Size(mm) 235*320 300*240 330*414 330*510 431*122 420*360 420*400
Rotor Blade Diameter(mm) 120 150 160 160 200 200 200
Rotor Blade Thickness(mm) 17 10 20 25 30/20 30/20 20
Rotor Blade Quantity (PCS) 20 24 20 20 3/6 12/18 20
Main Motor Power(KW) 2.2/3 4 2.2/3/4 2.2/3/4 1.5 4/5.5/7.5 4/5.5/7.5
Capacity Ref. (kgs/hour) 100-300 200-400 200-500 300-600 200-400 400-900 400-1000

Item DS2050 DS2060 DS2560 DS2860 DS2880 DS3090 DS3296
Cutting Chamber Size(mm) 420*504 420*603 517*602 580*608 580*808 620*908 660*965
Rotor Blade Diameter(mm) 200 200 250 280 280 300 320
Rotor Blade Thickness(mm) 20 20 16 20/30 40 30 40
Rotor Blade Quantity (PCS) 25 30 36 30/20 20 30 24
Main Motor Power(KW) 5.5/7.5 5.5/7.5 11/15 18.5 18.5/22 18.5-45 18.5-45
Capacity Ref. (kgs/hour) 500-1200 600-1500 1000-1200 1200-2000 1500-2500 1800-3000 2000-3500
Notes
motor power options can be selected according to customer requirements. Throughput is influenced by material composition, feed method and target output size. Customized machine configurations (blades, screens, feed systems) are available. Specifications provided are for reference and may be changed.
Technical specifications

• Motor layout: vertical single-motor double-shaft configuration
• Cutting system: wear-resistant high-strength alloy blades; blade geometry selectable
• Drive: high torque, low speed for stable and safe operation
• Noise & consumption: designed for low noise and reduced energy consumption
• Mobility: optional collection bin with swivel casters
• Maintenance: compact design for simplified access and service
• Capacity: varies with material density, composition and target output size
• Customization: voltage, motor power, blade type and other parameters selectable

Contact Liantai Machinery for detailed product information and a recommended solution based on your material and processing requirements.
