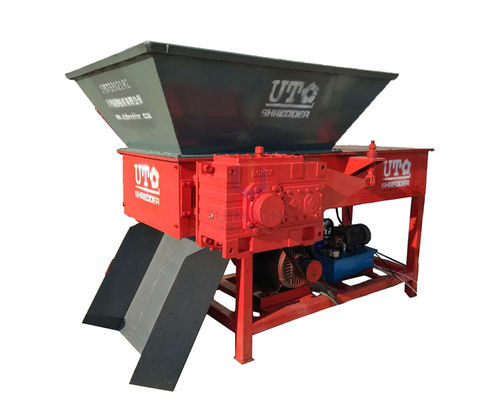

Single shaft shredder S2260

papersolid & bulk wastefor PET bottles

Product introduction
Single-shaft shredder is designed to recycle a wide range of non-metallic materials and mixed solid wastes. It accepts plastics, paper, wood, fiber, rubber, organic waste and similar materials. Machine configuration (feed opening, throughput and final particle size) is customizable to customer requirements. After shredding the output can be used directly or sent to further size reduction steps. PLC control allows automatic start/stop and process monitoring. Automatic reverse sensors protect against overloads and jams. Typical throughput: 300 kg/h to 5,000 kg/h+ depending on model and material.

Cutting principle
The cutting assembly comprises rotor, rotor blades, counter blades and screen. The minimum mounting clearance between rotor blade and counter blade is 0.1 mm. The motor transmits torque to the rotor via a speed reducer; rotor blades cut material against the counter blades. Material smaller than the screen opening is discharged; oversized material is recirculated and cut again until it passes the screen.

Advantages

• Detachable rotor blades for simplified disassembly, installation and maintenance.
• Optional automatic feeder to improve throughput consistency.
• Quick-change screens for accurate control of particle size.
• Shock-absorbing gearbox to reduce stress on drive components.
• Integrated rotor design to ensure stable cutter clearance between rotor and counter blades.
• Enclosed bearing protection (waterproof and dustproof) to extend bearing life.
• PLC control with automatic reverse sensor for overload and jam protection.
• Optional rotor cooling system for low-melting-point materials to prevent thermal damage.

Applications

• Plastics: film, jumbo bags, PET bottles, plastic barriers, pipes and panels.
• Hard plastics and regrind: purgings, fibers, engineering plastics (ABS, PC, PPS, etc.).
• Wood: timber, roots, pallets and packaging wood.
• Industrial solid waste: cables, light metals (aluminium scrap), white goods housings (TV, washer, refrigerator), computer housings, PCBs, household and industrial mixed waste.
• Other materials: rubber, textiles, fiber and glass products.

Specification notes
1. Voltage and motor power (power supply) are selectable per customer requirements. 2. Actual shredder capacity depends on material composition and target output size. 3. Specifications are for reference and subject to change; confirm details before ordering.

Technical specifications

• Product type: Single-shaft shredder
• Suitable materials: wide range of non-metallic and mixed solid wastes (plastics, wood, rubber, textile, etc.)
• Cutting components: rotor, rotor blades, counter blades, screen
• Minimum rotor blade–counter blade clearance: 0.1 mm
• Drive: motor → speed reducer → rotor
• Control: PLC automatic control; automatic reverse sensor for overload/jam protection
• Feeding: automatic feeder (optional)
• Screen: quick-change screens for particle size control
• Gearbox: shock-absorbing design
• Bearings: enclosed, waterproof and dustproof protection
• Cooling: rotor cooler available for low-melting materials
• Capacity range (typical): approx. 300 kg/h up to 5,000 kg/h+ depending on model and material
• Customization: voltage, motor power and detailed configuration selectable per customer requirements
