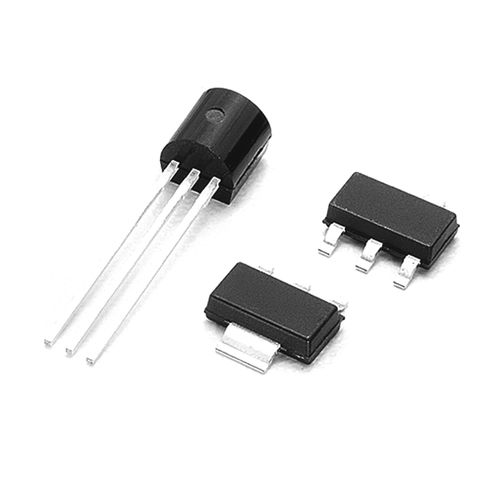

Thyristor S6002xS series

The S6002xS offers high very high di/dt capability through small die planar construction design. It is glass-passivated to ensure long term reliability and parametric stability. • Surge capability > 25Amps • Blocking voltage (VDRM / VRRM) capability — up to 600V • High di/dt capability of 500A/μs • Improved turn-off time (tq) < 55 μsec. • Sensitive gate for direct microprocessor interface • Thru hole and surface mount packages • RoHS compliant and Halogen-Free Applications: • The S6002xS is specifically designed for capacitor discharge application such as high-power gas flame ignition.
