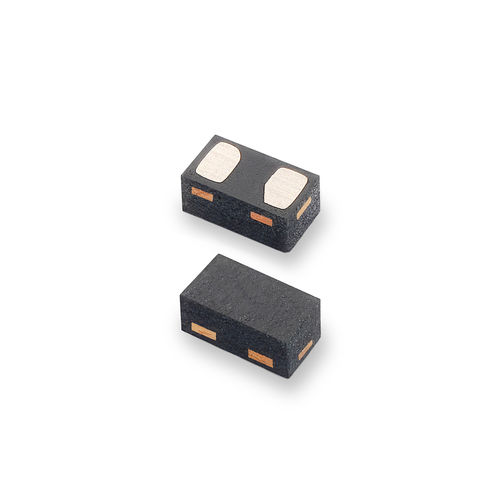

The SP3213 is a bidirectional TVS Diode that provides ultra low capacitance and a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). The typical capacitance of 0.09pF helps ensure signal integrity on the most challenging consumer electronics interfaces such as USB 3.2, 3.1, HDMI 2.1, 2.0, DisplayPort, Thunderbolt, and V-by-One®.
It can safely absorb repetitive ESD strikes at ±12kV (contact discharge, IEC 61000-4-2) without performance degradation and safely dissipate 2A of 8/20μs surge current (IEC 61000-4-5 2nd edition).
ESD, IEC 61000-4-2, ±12kV contact, ±18kV air
EFT, IEC 61000-4-4, 40A (5/50ns)
Lightning, 2A (8/20 as defined in IEC 61000-4-5 2nd Edition)
Low leakage current of 0.02μA(TYP) at 5V
Space efficient 0201 footprint
AEC-Q101 qualified
Halogen free, lead free and RoHS compliant
Moisture Sensitivity Level(MSL -1)
Applications:
Ultra-high speed data lines
USB 3.2, 3.1, 3.0, and 2.0
HDMI 2.1, 2.0, 1.4a, 1.3
DisplayPort(TM)
Thunderbolt (Light Peak)
V-by-One® • LVDS interfaces
Consumer, mobile and portable electronics
Tablet PC and external storage with high speed interfaces
