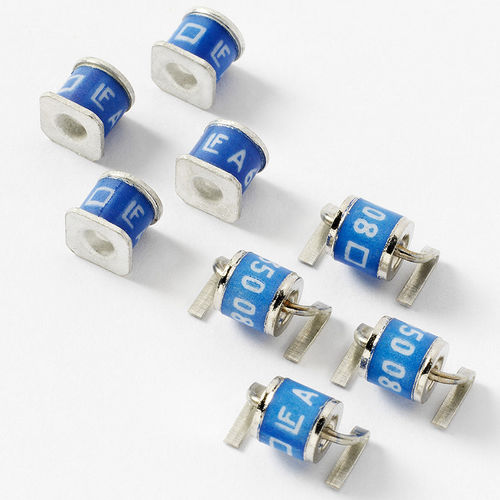

Gas discharge tube with 2 electrodes CG5 series

for telecommunication networks

Littelfuse CG5 MS mini surge arresters are specifically designed for protection of electrical and communication equipment against over voltage transients in surface mount assembly applications. This series offers the most cutting edge protection using non-radioactive elements. Features: • RoHS compliant and Lead-free • GHz working frequency • Excellent stability on multiple pulse duty cycle • Excellent response to fast rising transients. • Ultra Low Insertion Loss • 5KA surge capability tested with 8/20μS pulse as defined by IEC 61000-4-5 • Ultra small devices offered in a variety of mounting lead forms • Non-Radioactive • Low capacitance (<1pF) • Voltage Ranges 90V to 600V • UL recognized • Conforms to ITU-T K12, IEC 1000-4-5 Applications: • Communication equipment • CATV equipment • Test equipment • Data lines • Power supplies • Telecom SLIC protection • Broadband equipment • ADSL equipment, including ADSL2+ • XDSL equipment • Satellite and CATV equipment • General telecom equipment
