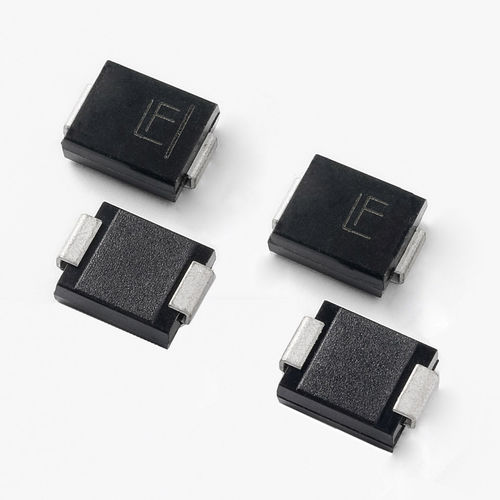

TVS diode 8.0SMDJ series
SMTACDC

TVS diode
TVS diode
Add to favorites
Compare this product


Characteristics

Technology
TVS
Mounting
SMT
Electrical characteristics
AC, DC, high-voltage
DC voltage

Min.: 13.3 V

Max.: 135 V

Reverse voltage

Min.: 12 V

Max.: 110 V

Description

The 8.0SMDJ High Voltage TVS Diode solution provides 8000W of peak pulse power dissipation in a compact DO-214AB SMC package. • Provides 8kW peak pulse power capability at 10/1000μs waveform, excellent clamping performance, and high power protection for sensitive electronics from voltage transients, increases reliability • High power density in compact, low profile DO-214AB package. • Compact surface mounted package (SMT) helps optimize board space • Wide range of selections available for circuit designers • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c • IEC-61000-4-2 ESD 30kV (Air), 30kV (Contact) • ESD protection of data lines in accordance with IEC 61000-4-2 • EFT protection of data lines in accordance with IEC 61000-4-4 • Fast response time: typically, less than 1.0ps from 0V to VBR min • High temperature reflow soldering guaranteed: 260°C/40sec Markets/ Applications: • Data Center • Industrial • Home Appliances • Consumer Electronics • DC Protection • AC Protection • PoE Protection • Low-speed Outdoor Port Protection
