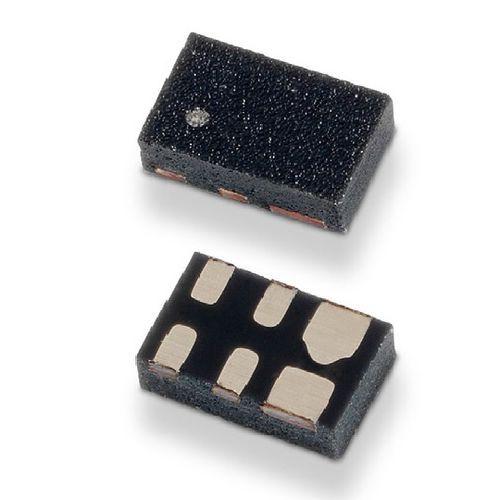

TVS diode array SP3401 series

SMDlow-capacitancehigh-speed

SP3401 is specifically designed to protect high-speed interfaces against ElectroStatic Discharge (ESD), such as DisplayPort interfaces and USB 3.1 Gen 1. The signal line is protected by a TVS diode offering low line capacitance of 0.35 pF typical. SP3401 can safely absorb repetitive ESD strikes up to ±18 kV contact exceeding IEC 61000-4-2, level 4 ( ±8kV contact discharge). Excellent low capacitance, clamping capability, low leakage, and fast response time make this parts an ideal solution for protecting high speed data lines. • ESD, IEC 61000-4-2, ±18kV contact, ±30kV air • EFT, IEC 61000-4-4, 80A (tP=5/50ns) • Lightning, IEC 61000- 4-5 2nd edition, 10A (tP=8/20μs) • Low capacitance of 0.35pF (TYP) per I/O • Low leakage current of 1nA (TYP) at 3.3V • Small form factor μDFN (JEDEC MO-229) package provides flow through routing to simplify PCB layout • AEC-Q101 qualified • Moisture Sensitivity Level(MSL -1) • Halogen free, lead free and RoHS compliant Markets/ Applications: • USB 3.1 Gen1 • HDMI • DisplayPort • S-ATA • NFC
