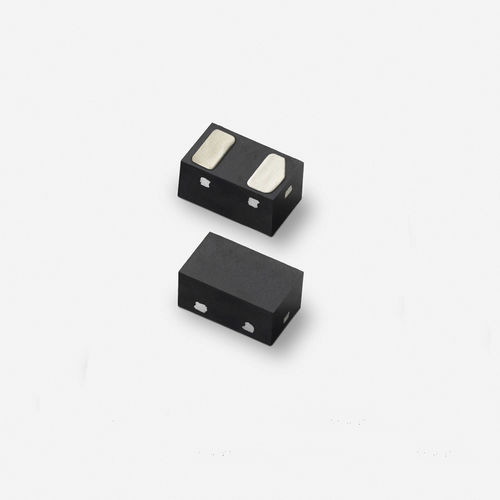

TVS diode array SP1250 series

avalancheSMDsilicon

The SP1250 unidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SP1250 TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. Additionally, each TVS can safely dissipate a 50A 8/20μs surge event as defined in IEC 61000-4-5 2nd edition. ESD, IEC 61000-4-2, ±30kV contact, ±30kV airEFT, IEC 61000-4-4, 40A (5/50ns) Lightning, 50A (8/20μs as defined in IEC 61000-4-5 2nd edition) Low leakage current of 0.02μA (TYP) at 5V Halogen free, lead free and RoHS compliant Moisture Sensitivity Level (MSL -1) Applications: VBUS Protection Portable Battery Switches / Buttons Test Equipment / Instrumentation Medical Equipment Notebooks / Desktops / Servers Computer Peripherals Point-of-Sale Terminals
