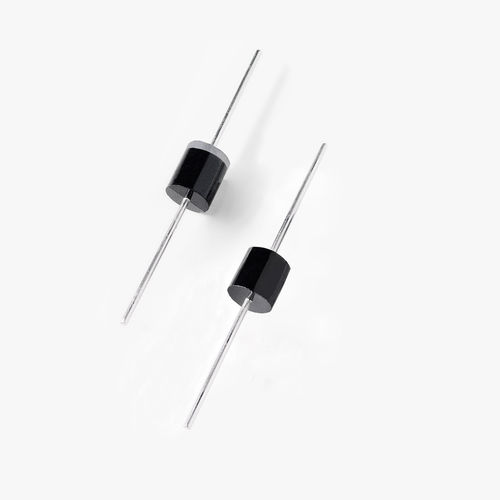

Power diode 30KPA series
TVSaxial-leadplastic

power diode
power diode
Add to favorites
Compare this product


Characteristics

Technology
TVS
Mounting
axial-lead
Function
power
Technical characteristics
plastic, glass
DC voltage

Max.: 493.4 V

Min.: 50 V

Reverse voltage

Max.: 300 V

Min.: 28 V

Description

The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. - Halogen-Free and RoHS compliant - Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C - Glass passivated chip junction in P600 package - 30000W peak pulse capability at 10×1000μs waveform, repetition rate (duty cycles):0.01% - Fast response time: typically less than 1.0ps from 0 Volts to BV min - Excellent clamping capability - Low incremental surge resistance - Typical IR less than 2μA above 73V - High temperature soldering guaranteed: 265°C./10 seconds/ 0.375,(9.5mm) lead length, 51bs., (2.3kg) tension - Plastic package has Underwriters Laboratory Flammability classification 94V-O - Matte Tin Leadfree plated
