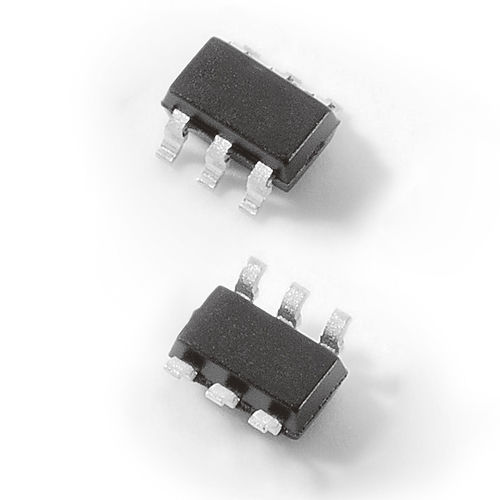

TVS diode array SRV05-4HTG-D series

SMDlow-capacitancefor electronics

The SRV05-4HTG-D integrates low capacitance rail-to-rail diodes with an additional zener diode to protect each I/O pin against ESD and high surge events. This robust device can safely absorb 10A surge current per IEC 61000-4- 5 (tP=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2. Their very low loading capacitance also makes them ideal for protecting high speed signal pins. • ESD, IEC 61000-4-2, ±30kV contact, ±30kV air • EFT, IEC61000-4-4, 40A (5/50ns) • Lightning, 10A (8/20μs as defined in IEC 61000-4-5 2nd Edition) • Low capacitance of 1pF (TYP) per I/O • Low leakage current of 0.5μA (MAX) at 5V • Small SOT23-6 (JEDEC MO-178) packaging • Halogen free, lead free and RoHS compliant • Moisture Sensitivity Level (MSL -1) • LCD/PDP TVs • Monitors • Notebooks • 10/100/1000 Ethernet • Firewire • Set Top Boxes • Flat Panel Displays • Portable Medical
